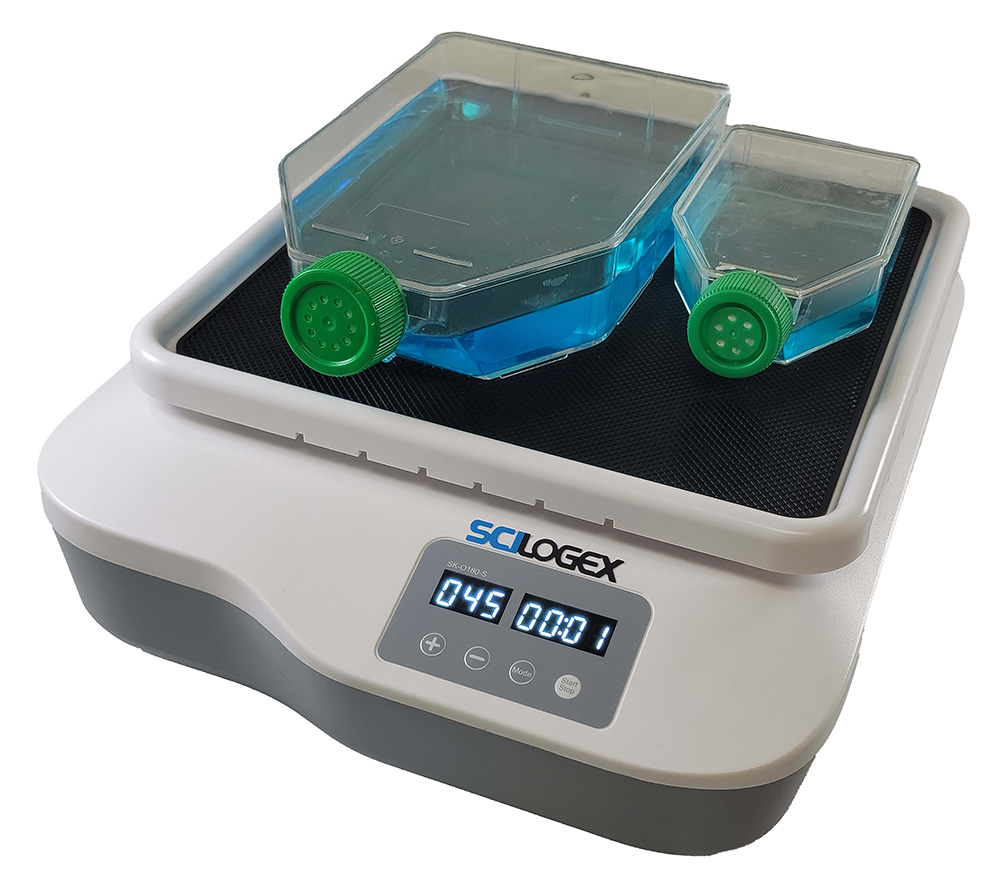

LCD Digital Orbital Shaker
Professional orbital shakers designed for consistent mixing in environmental chambers and incubators. Available in two platform sizes with brushless DC motors for smooth operation and long life.
Models
- SK-O330-Pro: 330mm orbital diameter
- SK-O180-Pro: 180mm orbital diameter
Features
- Independent display for speed and time
- Compact design
- Maintenance-free brushless motor
- Speed control with feedback
- Wide range of optional platforms and accessories
- Timer
- Remote control of data acquisition and data logging
Applications
Suitable for mixing in incubators, flasks and beakers ideal operation and evacuation application can be used in environmental chambers and 2 inch chambers.
Specifications
| Parameter |
SK-O330-Pro |
SK-O180-Pro |
| Orbital diameter |
330 mm |
180 mm |
| Max load capacity (with platform) |
7.5 kg |
2.5 kg |
| Motor type |
Brushless DC motor |
Brushless DC motor |
| Motor input power |
60 W |
50 W |
| Motor output power |
30 W |
25 W |
| Speed range |
20-300 rpm |
20-400 rpm |
| Speed display |
LCD |
LCD |
| Timer display |
LCD |
LCD |
| Time settings range |
1 min-999 min |
1 min-999 min |
| Voltage |
100-240V 50/60Hz |
100-240V 50/60Hz |
| Power |
65 W |
55 W |
| Weight |
10 kg |
5.5 kg |
| Dimension (W×D×H) |
440×440×135 mm |
340×340×133 mm |
| Protection class |
IP21 |
IP21 |
| Data connector |
RS232 |
RS232 |
| Permissible ambient temperature and humidity |
5-40°C 80% RH |
5-40°C 80% RH |
LCD Digital Orbital Shaker - Additional Models
Models
- SK-O330-M: 330mm orbital diameter with LED display
- SK-O180-S: 180mm orbital diameter with LED display
Features
- Independent display for speed and time
- Compact design
- Maintenance-free brushless motor
- Speed control with feedback
- Wide range of optional platforms and accessories
- Timer
- Wide range of accessories
Applications
Ideal shape suited for applications like bacterial culture, solubilized diet, growth of bacterial and yeast, extraction procedures, washing procedures, diagnostic, hybridization, general mixing, staining/destaining, mixing and extracting. Suitable for almost all vessels from micro-centrifuge tube heights and microplates to conical flasks.
Specifications
| Parameter |
SK-O330-M |
SK-O180-S |
| Orbital diameter |
330 mm |
180 mm |
| Max load capacity (with platform) |
7.5 kg |
2.5 kg |
| Motor type |
Brushless DC motor |
Brushless DC motor |
| Motor input power |
60 W |
50 W |
| Motor output power |
30 W |
25 W |
| Speed range |
20-300 rpm |
20-400 rpm |
| Speed display |
LED |
LCD |
| Timer display |
LED |
LCD |
| Time settings range |
1 min-999 min |
1 min-999 min |
| Voltage |
100-240V 50/60Hz |
100-240V 50/60Hz |
| Power |
65 W |
55 W |
| Weight |
10 kg |
5.5 kg |
| Dimension (W×D×H) |
440×440×135 mm |
340×340×133 mm |
| Protection class |
IP21 |
IP21 |
| Work plate Dimension (W×D) |
330×330 mm |
— |
| Permissible ambient temperature and humidity |
5-40°C 80% RH |
5-40°C 80% RH |
LCD Digital Linear Shaker
Linear reciprocating shaking action designed for mixing in incubators, flasks and beakers. Can be used in environmental chambers and 2 inch chambers.
Models
Features
- Independent display for speed and time
- Speed range of 20-300 rpm
- Maintenance-free brushless motor
- Speed control with feedback
- Wide range of platforms with a variety of vessels
Applications
Suitable for mixing in incubators, flasks and beakers ideal for operation and evacuation application can be used in environmental chambers and 2 inch chambers.
Specifications
| Parameter |
SK-L330-Pro |
SK-L180-Pro |
| Amplitude |
25 mm |
20 mm |
| Max load capacity (with platform) |
7.5 kg |
2.5 kg |
| Motor type |
Brushless DC motor |
Brushless DC motor |
| Motor input power |
60 W |
50 W |
| Motor output power |
30 W |
25 W |
| Speed range |
20-300 rpm |
20-400 rpm |
| Speed display |
LCD |
LCD |
| Timer display |
LCD |
LCD |
| Time settings range |
10 min-999 min |
1 min-999 min |
| Voltage |
100-240V 50/60Hz |
100-240V 50/60Hz |
| Power |
65 W |
55 W |
| Weight |
10 kg |
5.5 kg |
| Dimension (W×D×H) |
440×440×135 mm |
340×340×133 mm |
| Protection class |
IP21 |
IP21 |
| Data connector |
RS232 |
RS232 |
| Permissible ambient temperature and humidity |
5-40°C 80% RH |
5-40°C 80% RH |
LCD Digital See-Saw Rocker
Designed for time-dependent and low-speed sensitive shaking applications like immunoassays, protein immunoassay, hybridization staining/destaining gels, immunoprecipitation and Western blot, cell culture, pharmacological profiling, etc.
Model
SK-R-Pro
Features
- See-Saw motion angle 8°
- Maximum load capacity of 10 kg with platform
- Speed range of 10-80 rpm
- Double for independent display of time and speed
- Wide range of platforms with a variety of vessels
Applications
Designed for time-dependent and low-speed sensitive shaking applications like immunoassays, protein immunoassay, hybridization staining/destaining gels, immunoprecipitation and Western blot, cell culture, pharmacological profiling, etc.
Specifications
| Parameter |
SK-R-Pro |
| Tilt angle |
8° |
| Max load capacity (with platform) |
10 kg |
| Motor type |
DC motor |
| Motor input power |
40 W |
| Motor output power |
20 W |
| Speed range |
10-80 rpm |
| Speed display |
LCD |
| Timer display |
LCD |
| Time settings range |
1 min-999 min |
| Voltage |
100-240V 50/60Hz |
| Power |
45 W |
| Weight |
7 kg |
| Dimension (W×D×H) |
440×440×145 mm |
| Protection class |
IP21 |
| Permissible ambient temperature and humidity |
5-40°C 80% RH |
LCD Digital 3D Rocker
Three-dimensional rocking motion with an angle of 8°. Designed for gentle mixing of flasks, culture dishes and gels. Ideal for culturing a variety of cells, extraction, distributing of cells and gel staining/destaining of cells.
Model
SK-D-Pro
Features
- Three-dimensional rocking motion with an angle of 8°
- Maximum load capacity of 5 kg with platform
- Speed range of 10-80 rpm
- Independent display of time and speed
- Incubator compatible
- Various platform accessories
- Timer
- Wide range of accessories
Applications
Shaped for gentle mixing in flasks, culture flasks, petri dishes
