COD Reactor

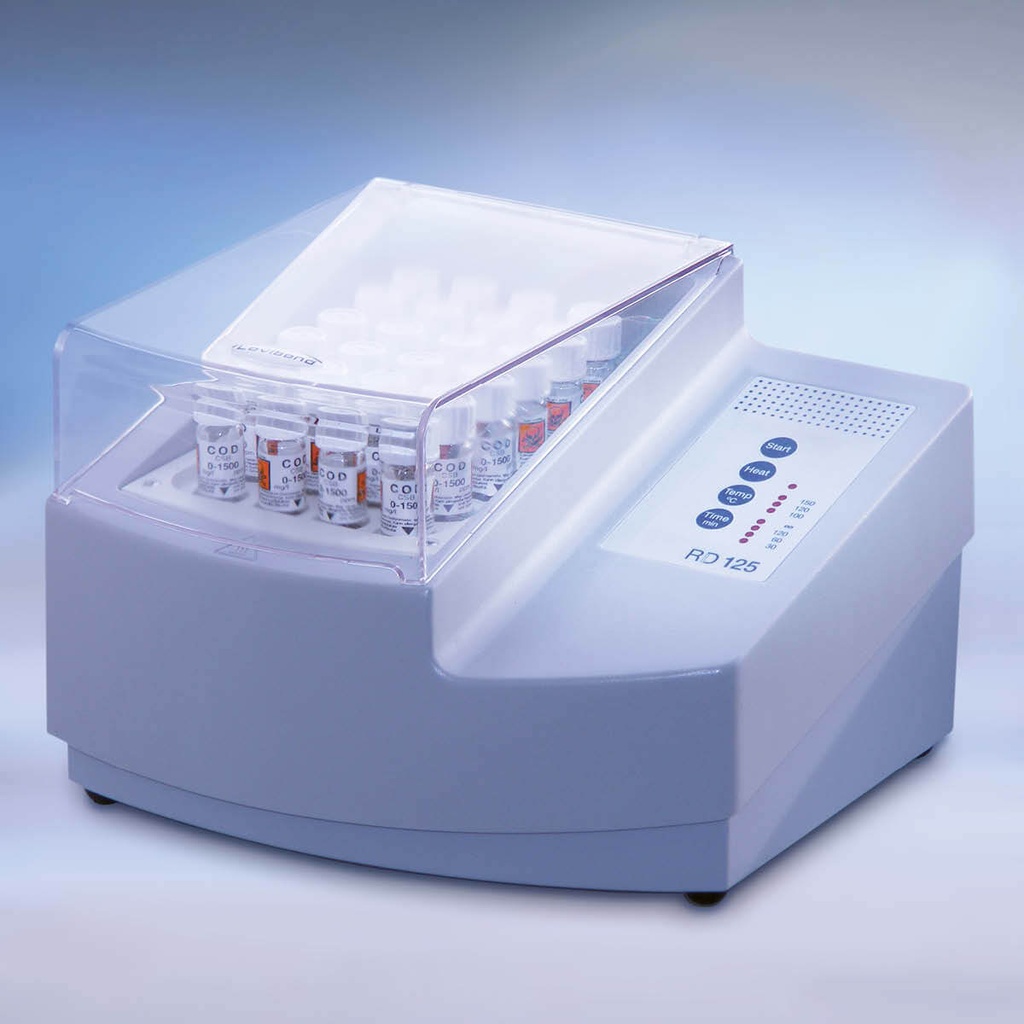

The Lovibond RD125 Thermoreactor is for 16mm tubes, 24 slots.

Flexible thermoreactor for sample preparation of photometrical determination of COD, total chrome, total phosphate, total nitrogen and TOC. Digestion is possible with three temperature ranges and three pre-programmed reaction times

FEATURES:
- Three Temperature Ranges: The reactor can operate optionally with 100°C, 120°C or 150°C – depending in each case on the sample to be prepared.
- Three Different Reaction Times: Three different reaction times are available with 30, 60 and 120 minutes. Your advantage: Afterwards the unit switched itself off automatically.
- Large Cuvette Shaft: Place up to 24 16-mm-round cuvettes in the RD 125.
- Voltage Change Possible: The RD 125 can be used with various voltages: Choose 110 V and 220 V with the voltage selector on the back.

SPECIFICATIONS:
Holes in the aluminium block: 24 holes, ø 16.2 mm ± 0.2 mm
Selectable temperatures °C:100 / 120 /150
Probe type: Pt100 A class
Temperature stability °C at the Pt100: ± 1
Selected time: 30 / 60 / 120 / min continuous
Heating up from (20 °C --> 150 °C): 12 min
Thermoregulation : Microprocessor

RANGE:
Test Parameter Measuring Range Method No. Chemical Method
Persulphate Digestion
Chromium 50 PP 0.005 - 0.5 mg/L Cr M124 Diphenylcarbazide
Chromium PP 0.02 - 2 mg/L Cr M125 Diphenylcarbazide
COD HR TT 0.2 - 15 g/L O2 M132 Dichromate / H2SO4
COD HR TT 200 - 15000 mg/L COD M132 Dichromate / H2SO4
COD LMR TT 15 - 300 mg/L COD M133 Dichromate / H2SO4
COD LMR TT 15 - 300 mg/L O2 M133 Dichromate / H2SO4
COD LR TT 3 - 150 mg/L COD M130 Dichromate / H2SO4
COD LR TT 3 - 150 mg/L O2 M130 Dichromate / H2SO4
COD MR TT 20 - 1500 mg/L COD M131 Dichromate / H2SO4
COD MR TT 20 - 1500 mg/L O2 M131 Dichromate / H2SO4
COD VLR TT 2.0 - 60.0 mg/L COD M134 Dichromate / H2SO4
COD VLR TT 2.0 - 60.0 mg/L O2 M134 Dichromate / H2SO4
mg/L COD
mg/L TOC H2SO4/Persulphate/Indicator
Phosphate h. TT 0.02 - 1.6 mg/L P M325 Phosphomolybdenum Blue
Phosphate t. TT 0.02 - 1.1 mg/L P M326 Phosphomolybdenum Blue
Phosphate total HR TT 1.5 - 20 mg/L P M318 Phosphomolybdenum Blue
Phosphate total LR TT 0.07 - 3 mg/L P M317 Phosphomolybdenum Blue
TN HR 2 TT 5 - 140 mg/L N M284 2,6-Dimethylphenole
TN HR TT 5 - 150 mg/L N M281 Persulphate Digestion
TN LR 2 TT 0.5 - 14 mg/L N M283 2,6-Dimethylphenole
TN LR TT 0.5 - 25 mg/L N M280 Persulphate Digestion
TOC HR M. TT 50 - 800 mg/L TOC M381 H2SO4/Persulphate/Indicator
TOC LR M. TT 5 - 80 mg/L TOC M380 H2SO4/Persulphate/Indicator
