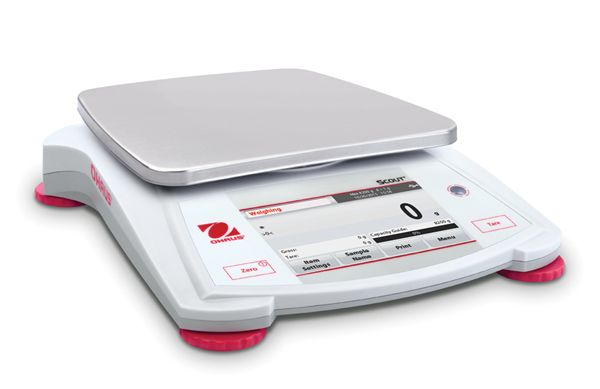

Scout® Portable Balances
Ideal for laboratory and industrial applications, the OHAUS Scout features an easy to navigate color touchscreen display and a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options.
Standard Features
- Quick and Efficient Navigation with the Informative Color Touchscreen Display: Large, resilient color touchscreen allows for effortless operation of the Scout through its informative icon driven menu structure, guiding the user through every step of the weighing application.
- Fast Weighing Speed and High Resolution Deliver Repeatable and Reliable Results: Stabilization time as fast as 1 sec means increased productivity in your facility. Equipped with advanced weighing technology, the Scout also ensures repeatable and reliable weighing results.
- Superior Overload Protection & Stackable Storage Drive Overall Durability: Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments. The space-saving, slim design allows for stackable storage.
- Multiple Connectivity Options for Greater Flexibility in Communication: With expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth®, the Scout provides added versatility to your data collection and transfer needs.
Informative Touchscreen Display
Portable balance operation has never been easier, faster or as intuitive as the new OHAUS Scout with color touchscreen display. Navigate easily through the Scout's resistive touchscreen interface and icon-driven menu structure, maneuver efficiently in and out of application modes, change weighing units with a simple press of the screen and execute setup and calibration functions in no time.
A real-time clock function keeps accurate time even during power loss. Additionally, GLP/GMP tracking capabilities assist in the monitoring and reporting of data.
Increased Efficiency and Productivity
Stabilization time as fast as 1 sec means increased productivity in the lab, or on the line. With improved resolution, you can count on extremely precise and repeatable weighing results time and time again.
Signature Durability
The Scout includes superior overload protection rated at 10 times the capacity of the balance, high strength stainless steel pan, impact-resistant pan support and integrated transportation/storage lock. The high quality, resistive touchscreen is built to last. The Scout Touchscreen is designed to be stackable when utilizing the included stacking and storage cover, which also protects the balance when not in use.
Versatile Data Collection and Transfer
With expanded connectivity options now featuring Bluetooth®, the OHAUS Scout offers more versatility for convenient data logging, communication and remote functionality. Utilize the Bluetooth® accessory to remotely control the balance from your mobile device or tablet for Android™. Perform functions such as Zero, Tare, Print, Power Off and more. Other accessories include RS232, USB Device, USB Host and Ethernet. With the USB Host option, you can simply save and transfer data from the balance to a USB drive.
Draftshield Model Available
Scout's ingenious draftshield (1mg models only) was designed with an easy to remove top cover piece. This serves as a wind protection ring which keeps the weighing surface stable in rough environments, while maintaining weighing speed.
Key Features
- Weigh Below Hook: The integral weigh below hook on the bottom of the Scout allows for density determination or specific gravity calculations
- Security Slot: Integrated security slot prevents theft
- Lockswitch: The Scout can be locked into a specific configuration using the lockswitch
- Color Touch Screen Display: Informative icon-driven touchscreen display for easy navigation
- Connectivity: Expanded connectivity options including RS232, USB Host, USB Device, Ethernet and Bluetooth®
Technical Specifications
| Model |
STX123 |
STX223 |
STX222 |
STX422 |
STX622 |
STX1202 |
STX2202 |
STX421 |
STX621 |
STX2201 |
STX6201 |
STX8200 |
| Capacity (g) |
120 |
220 |
220 |
420 |
620 |
1200 |
2200 |
420 |
620 |
2200 |
6200 |
8200 |
| Readability (g) |
0.001 |
0.001 |
0.01 |
0.01 |
0.01 |
0.01 |
0.01 |
0.1 |
0.1 |
0.1 |
0.1 |
1 |
| Repeatability (Std. Dev.) (g) |
0.002 |
0.002 |
0.01 |
0.01 |
0.01 |
0.02 |
0.02 |
0.1 |
0.1 |
0.1 |
0.1 |
1 |
| Linearity (g) |
0.003 |
0.003 |
0.01 |
0.01 |
0.02 |
0.03 |
0.03 |
0.1 |
0.1 |
0.1 |
0.2 |
1 |
| Span Calibration Mass |
100 g |
200 g |
200 g |
200 g |
300 g |
1 kg |
2 kg |
200 g |
300 g |
2 kg |
5 kg |
8 kg |
| Linearity Calibration Mass |
50, 100 g |
100, 200 g |
100, 200 g |
200, 400 g |
300, 600 g |
500 g, 1 kg |
1 kg, 2 kg |
200, 400 g |
300, 600 g |
1 kg, 2 kg |
3 kg, 6 kg |
4 kg, 8 kg |
| Stabilization Time (s) |
1.5 |
1.5 |
1 |
1 |
1 |
1.5 |
1.5 |
1 |
1 |
1 |
1 |
1 |
| Draftshield |
Yes |
Yes |
No |
No |
No |
No |
No |
No |
No |
No |
No |
No |
| Pan Size (W × D) |
Ø3.7 in/93 mm |
Ø 4.7 in/120 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
Ø 4.7 in/120 mm |
Ø 4.7 in/120 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
6.7 × 5.5 in/170 × 140 mm |
General Specifications
| Parameter |
Specification |
| Construction |
ABS housing & stainless steel pan |
| Calibration |
User-selectable external span or linearity calibration/Digital with external weight |
| Tare Range |
Full capacity by subtraction |
| Weighing Units |
mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, customer unit 1 |
| Application Modes |
Weighing, Parts Counting, Percent Weighing, Check Weighing, Animal/Dynamic Weighing, Totalization, Density Determination, Display Hold, Mole Weighing |
| Power Requirement |
AC adapter (included) or 4 AA batteries (not included) |
| Typical Battery Life |
6 hours |
| Communication |
RS232, USB Host, USB Device, Ethernet or Bluetooth® (available as an accessory) |
| Display Type |
4.3" (109 mm) full-color VGA graphic touchscreen display with user-controlled brightness |
| Display Size |
4.3 in/109 mm (diagonal) |
| Overload Capacity |
10 times the rated capacity |
| Operating Temperature Range |
50°F/10°C to 104°F/40°C at 10% to 80% relative humidity, non-condensing |
| Storage Conditions |
-20°C (-4°F) to 55°C (131°F) at 10% to 90% relative humidity, non-condensing |
| Balance Dimensions (W × D × H) |
8 × 8.7 × 4.1 in/202 × 222 × 103 mm (models with draftshield)
8 × 8.8 × 2.1 in/202 × 224 × 54 mm (models without draftshield) |
| Shipping Dimensions (W × D × H) |
11.8 × 9.8 × 5.1 in/300 × 250 × 129 mm |
| Net Weight |
2.2 lb/1 kg |
| Shipping Weight |
3.5 lb/1.6 kg |
Capacity & Readability by Weighing Unit
| Model |
STX123 |
STX223 |
STX222 |
STX422 |
STX622 |
STX1202 |
STX2202 |
STX421 |
STX621 |
STX2201 |
STX6201 |
STX8200 |
| Gram (g) |
120 × 0.001 |
220 × 0.001 |
220 × 0.01 |
420 × 0.01 |
620 × 0.01 |
1200 × 0.01 |
2200 × 0.01 |
420 × 0.1 |
620 × 0.1 |
2200 × 0.1 |
6200 × 0.1 |
8200 × 1 |
| Kilogram (kg) |
/ |
/ |
/ |
/ |
/ |
1.2 × 0.00001 |
2.2 × 0.00001 |
/ |
/ |
2.2 × |
