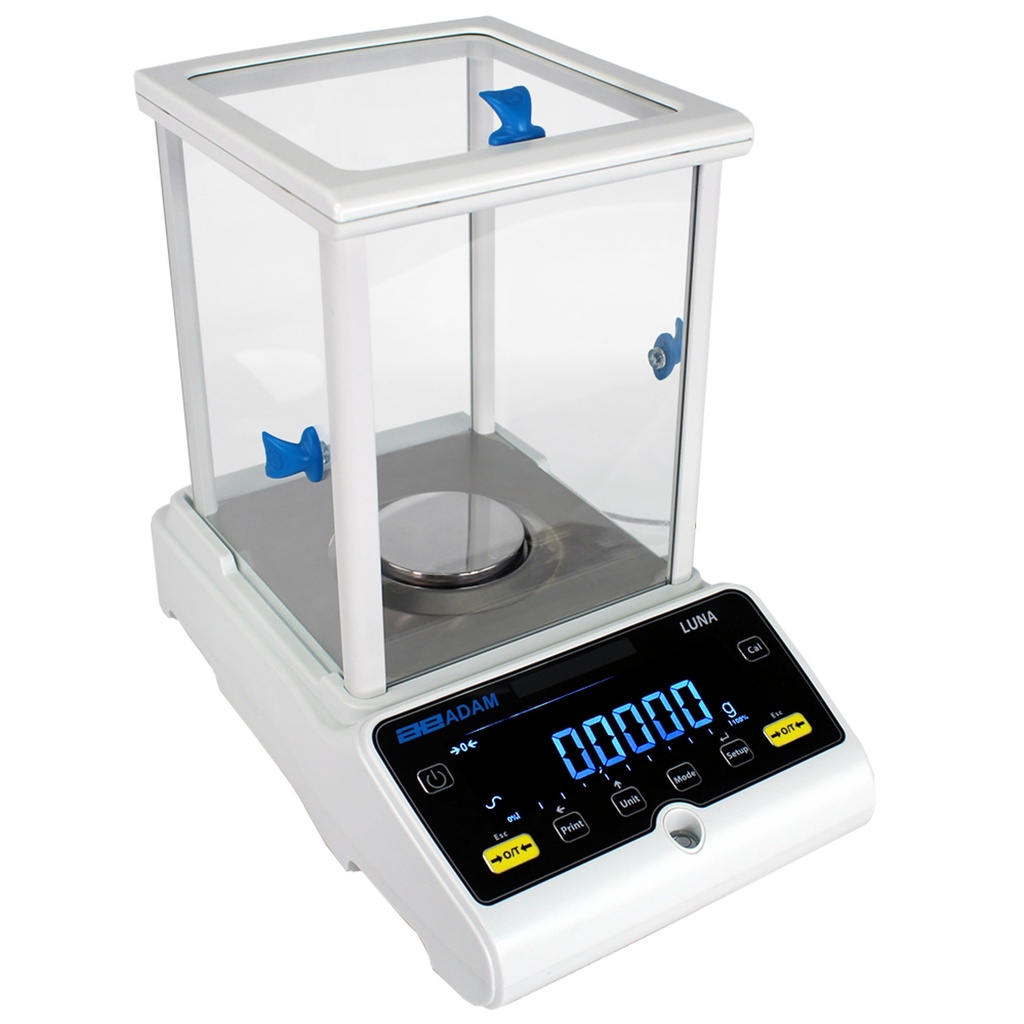

Luna Analytical Balances
Luna analytical balances are designed with an array of features and functions that accommodate most lab applications. The Luna range offers improved performance for faster, more accurate readings. With stylish, modern backlighting, Luna's impressive display gives an aura of smart sophistication. The LCD features large, readily discernible 24mm digits in white on a black background. Multilingual text and display capability make Luna well-suited for users in various regions.
For simple operation, navigation buttons are colour-coded, helping users perform functions with minimal training. Luna provides USB and RS-232 interfaces to facilitate data collection and transmission to computers or printers. ABS plastic construction and rugged grade 304 stainless steel pan mean Luna is easy to clean and can withstand demanding lab use. Available in four models with capacities up to 250g, Luna offers a readability of 0.0001g and can perform basic and detailed measuring tasks.
Applications
- Weighing
- Parts counting
- Percentage weighing
- Dynamic / animal weighing
- Density determination
- Checkweighing
- Net total weighing
Features
- Vivid, backlit LCD easily visible in any lighting conditions
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows easy cleaning
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
- External calibration allows for verification and adjustment with weights
- Multilingual display allows use in many different countries
- Parts counting with preset sample sizes
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Selectable digital filtering for animal/dynamic weighing enables consistent results for moving subjects
- Auto power-off to save energy
- AC adapter included
Specifications
| Model |
LAB 84e |
LAB 124e |
LAB 214e |
LAB 254e |
LAB 84i |
LAB 124i |
LAB 214i |
LAB 254i |
| Capacity |
80g |
120g |
210g |
250g |
80g |
120g |
210g |
250g |
| Readability |
0.0001g |
0.0001g |
0.0001g |
0.0001g |
0.0001g |
0.0001g |
0.0001g |
0.0001g |
| Repeatability (S.D.) |
0.0002g |
0.0002g |
0.0002g |
0.0002g |
0.0002g |
0.0002g |
0.0002g |
0.0002g |
| Linearity (+/-) |
0.0003g |
0.0003g |
0.0003g |
0.0003g |
0.0003g |
0.0003g |
0.0003g |
0.0003g |
| Pan Size |
80mm ø |
| Weighing Units |
mg, g, ct, GN, N, dr, oz, ozt, dwt, mm, tl.T, tl.H, tl.S, T, custom unit |
| Stabilisation Time (sec) |
2 |
| Interface |
RS-232, USB |
| Calibration |
External calibration |
Internal automatic calibration / External calibration |
| Display |
Backlit LCD with 24mm-high digits |
| Power Supply |
18VDC 50/60Hz 830mA adapter |
| Operating Temperature |
15° to 35°C |
| Housing |
ABS plastic |
| Draught Shield |
Chamber 192x195x230mm |
| Overall Dimensions |
224x374x338mm (wxdxh) |
| Net Weight |
5.8kg |
6.2kg |
Accessories
| Item Number |
Description |
| 104008036 |
Anti-vibration table |
| 3074010267 |
USB cable |
| 3012014259 |
In-use cover |
| 1120011156 |
ATP thermal printer |
| 3014011014 |
RS-232 cable M-F |
| 700100046 |
Kensington-type lock and cable |
| 600002028 |
AdamDU Data Collection Program |
| 700660290 |
Calibration certificate |
| 1120014641 |
AIP impact printer |
| 700100410 |
ABI-1 Ioniser |
| 700100207 |
E2 1g to 200g calibration weight set |
| 700100022 |
E2 100g calibration weight |
| 700100023 |
E2 200g calibration weight |
| 700100232 |
E2 50g calibration weight |
| 700100026 |
E2 1mg - 200g calibration weight set |
Key Accessories
ATP thermal printer
Easy-to-use features combined with quick set-up equals a truly versatile thermal printer. A single push-button feed key and three easy-to-read LED indicators make operation simple.
AIP impact printer
Easy to use, the AIP high-speed dot matrix printer connects with any device containing an RS-232 or USB interface. Communication is smooth and fast, as the AIP automatically detects a scale's settings. AIP features durable ABS plastic construction and is simple to use, as it operates with just an on/off switch and a paper feed button.
