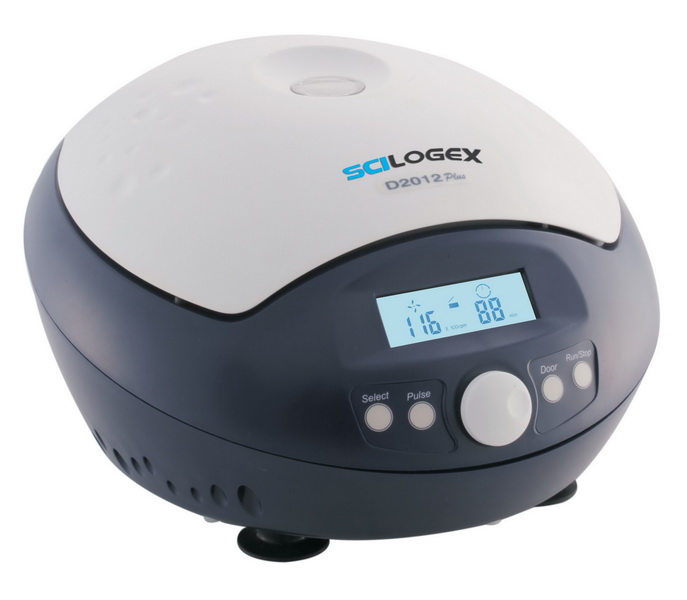

High Speed Micro-Centrifuges
High speed micro centrifuges are widely used in physical and chemical analysis, biochemistry, cellular and molecular biology, clinical labs ideal for high-end research applications.
Applications
- Sedimentation of cells and viruses
- Separation of sub-cellular organelles
- Isolation of macromolecules such as DNA, RNA, proteins or lipids
Precise Control
- Brushless DC motor accelerates quickly to the set speed
- High accuracy of speed in ±20 rpm
- Digital timer adjustable from 30 sec. to 99 min or set for continuous run
- Timer starts only when the set speed is achieved and then maintains the accuracy of separation time
Ergonomic Design
- User-friendly large LCD display shows real-time information
- Both RPM or G-force can be set and displayed
- The parameters can be modified after the set speed is reached
- The short spin function is used for quick spins by pressing and holding PULSE key. The centrifuge speed can be accelerated and held at the target speed
- Automatic lid-lock release prevents sample warming and allows easy access
- Concise display and Sound-alert
Safety Standards and Reliability
- Quiet operation, maximum reliability
- High strength metal casing ensures security during centrifugal process
- Gentle braking at low speed with efficient separation
Features
- Brushless DC motor drive quickly accelerates the rotor to set speed
- Quiet working, Low noise ≤54dB
- LCD display
Specifications
| Parameter |
Specification |
| Max. Speed |
15000rpm (500-15000rpm), increment: 100rpm |
| Max. RCF |
15100×g, increment: 100×g |
| Speed Accuracy |
±20rpm |
| Rotor Capacity |
0.2mL/0.5mL/1.5mL/2mL×12 |
| Run Time |
30sec-99min/Continuous |
| Driving Motor |
Brushless DC motor |
| Safety Devices |
Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Power |
Single-phase, AC100V-240V, 50Hz/60Hz, 3A, 100W |
| Noise Level |
≤54dB |
| Acceleration/Braking Time |
11s/09s |
| Dimension [D×W×H] |
255×245×140mm |
| Weight |
6kg |
| Certification |
EMC, CE, FCC, ICES, cTUVus, CB |
| Advanced Features |
Speed/RCF switch, Short-time run function, Sound-alert function |
Available Rotors
A12-2P
| Parameter |
Specification |
| Max. Speed |
15000rpm |
| Max. RCF |
15100×g |
| Rotor Capacity |
2mL/1.5mL×12, 0.2mL×12, 0.5mL×12 |
| Rotor Material |
High strength plastic |
| Available Rotor Adapters |
A02P2, A05P2 |
| Cat. No. |
119400010 |
Available Adapters
A02P2 - 0.2mL Rotor Adapter
Used with A12-2, A12-2P, AS24-2 and A24-2P rotors
24 pcs/pk
Cat. No. 119500001
A05P2 - 0.5mL Rotor Adapter
Used with A12-2, A12-2P, AS24-2 and A24-2P rotors
24 pcs/pk
Cat. No. 119500002
