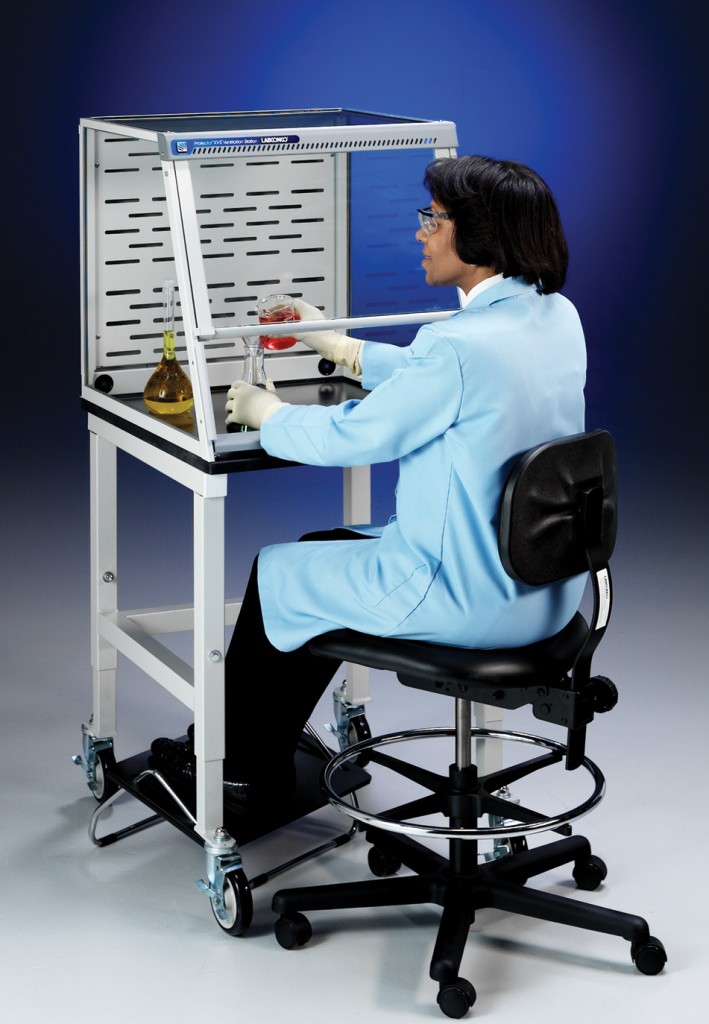

Protector Work Stations for Pathology and Histology Applications
Protector Work Stations deliver specialized containment solutions for pathologists and histotechnologists working with solvent vapors during gross sectioning, trimming, coverslipping, and staining procedures. These professional-grade enclosures utilize patented containment features and adjustable face velocities from 60 to 100 fpm to remove chemical vapors from the laboratory environment.
Two Available Configurations
Models designed for remote blower or house exhaust connection provide protection against a broad range of chemicals, particularly recommended when chemical concentrations are high, unknown, or unpredictable. These units may alternatively connect to the FilterMate Portable Exhauster for carbon-filtered air return to the laboratory without external ducting.
Self-contained models with built-in blower accommodate two large carbon filters—available in Organic, Formaldehyde, and Ammonia types in any combination. These filters maintain low chemical concentrations below OSHA-recommended time-weighted average (TWA) levels while returning clean air to the laboratory. Carbon Filters sold separately.
Advanced Containment Design Features
- Patented Clean-Sweep air foil creates continuous clean air barrier at work surface with ergonomic forearm support
- Patented upper containment sash foil directs contaminants away from operator breathing zone
- Upper dilution air supply introduces room air at sash top to dilute upper chamber contaminants
- Side-entry air foils sweep interior glass surfaces for enhanced containment
- Patented Type 304 stainless steel rear baffle with zone perforations promotes horizontal laminar airflow
- Pivoting, removable baffle for easy cleaning and filter access (built-in blower models)
- 8" high sash opening limits exhaust demand and conserves tempered room air
Construction and Materials
- Powder-coated aluminum frame and steel rear plenum for durability and chemical resistance
- 1/4" thick tempered safety glass front sash and sides provide fire, scratch, and chemical resistance
- Ergonomic 20° angled hinged sash with spring-loaded latch and wiping seals
- Sash pivots upward and locks to 19.0" height for loading and cleaning
- Front-mounted light and blower switches
- Glare-free fluorescent lighting
- Rear-mounted electrical receptacle activated by blower switch
Models with Built-In Blower (3930000, 3930020)
- Dynamically-balanced motorized impeller for quiet operation
- Speed control for technician validation and adjustment
- Two release knobs for baffle access to filters
- Requires two Carbon Filters (not included)
Models for Remote Blower (3930001, 3930021)
- 2" x 10" rectangular exhaust openings on top and bottom
- Two utility ports with iris openings and plugs
- Static pressure loss from 0.06" to 0.16" depending on airflow
- Requires remote blower, house exhaust, or FilterMate Portable Exhauster (not included)
- Requires Exhaust Transition Adapters and ductwork (not included)
Performance Specifications
| Face Velocity (fpm) |
Exhaust Volume (CFM) |
Noise Pressure dB(A) Built-In Models |
Static Pressure Loss (Inches H2O) Remote Models |
| 60 |
150 |
57-59 |
0.06" |
| 80 |
200 |
62-64 |
0.10" |
| 100 |
250 |
69-71 |
0.16" |
Dimensions and Electrical
Overall Dimensions: 48.0" w x 29.0" d x 31.4" h (121.9 x 73.7 x 79.8 cm)
Interior Dimensions: 17.2" deep x 20.0" loading height
Sash Opening: 8.0" high
| Catalog Number |
Electrical Requirements |
Power Cord |
Blower Type |
Shipping Weight |
| 3930000 |
115 volts, 60 Hz, 10 amps |
6.5' with plug |
Built-in |
120 lbs. (54 kg) |
| 3930001 |
115 volts, 60 Hz, 10 amps |
6.5' with plug |
Requires remote |
100 lbs. (45 kg) |
| 3930020 |
230 volts, 50/60 Hz, 5 amps |
9' without plug |
Built-in |
120 lbs. (54 kg) |
| 3930021 |
230 volts, 50/60 Hz, 5 amps |
9' without plug |
Requires remote |
100 lbs. (45 kg) |
Required Accessories (Not Included)
- Supporting work surface
- Supporting base
- Carbon Filters (two required for built-in blower models)
- Remote blower, house exhaust, or FilterMate Portable Exhauster (for models 3930001 and 3930021)
- Exhaust Transition Adapters (for models 3930001 and 3930021)
- Ductwork (for ducted models)
Compliance and Standards
- SEFA 9-2010, DH I (Built-in blower models or models connected to FilterMate Portable Exhauster only)
- SEFA 1-2010 (Ducted models only)
- SEFA 8-2010, Cabinet Surface Finish Tests
- Modified ASHRAE 110-1995
- ANSI Z9.5-2011
- UL 61010-1 (115 volt models)
- CAN/CSA C22.2 No. 61010-1 (115 volt models)
- CE Conformity Marking (230 volt models)
- ETL listed (115 volt models)
