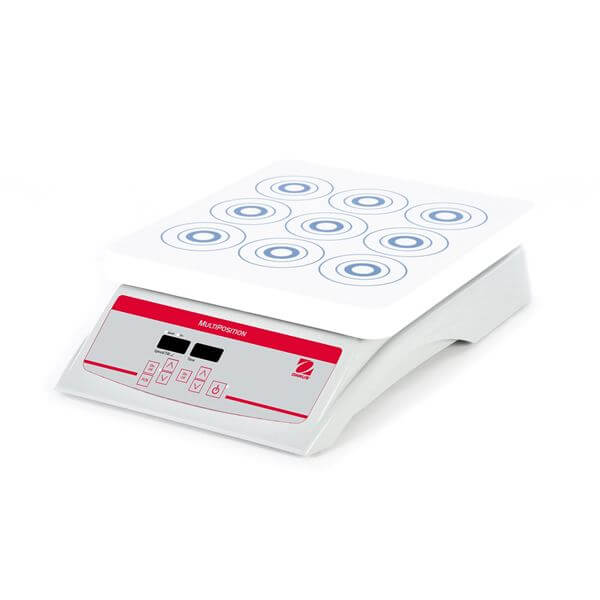

Multi-Position Magnetic Stirrers for High-Throughput Applications
These multi-position magnetic stirrers deliver synchronized and uniform mixing across multiple samples simultaneously. Available in four-position and nine-position configurations, these powerful stirrers feature microprocessor-controlled speed regulation for repeatable performance. Choose between digital models with touchpad controls or non-digital models with adjustment knobs to suit your laboratory workflow requirements.
Key Product Advantages
The 318 x 279 mm glass-filled nylon top plate provides a chemical-resistant work surface with reflective white color that minimizes unintended sample heating. The generous platform accommodates up to 9 x 250 mL flasks or 4 x 1 L flasks depending on model selection.
Speed ramping functionality gradually increases motor speed for enhanced coupling and improved stirring safety. This feature prevents splashing, improves spin bar control, and provides excellent low-end speed control for sensitive applications.
Digital models offer touchpad controls for precise input of speed and time parameters. Non-digital models utilize an adjustment knob with dial markings from 1-10. All models employ microprocessor regulation to maintain consistent speed adjustments throughout the operating range.
Construction and Design
- Cast aluminum housing for durability
- Glass-filled nylon top plate with chemical-resistant properties
- Reflective white surface to reduce sample heating
- Speed ramping feature for enhanced coupling and stirring control
- Microprocessor-controlled speed regulation for precision
- Timer function that counts up or counts down to zero with alarm
- Includes stir bars for each stirring position
Technical Specifications
| Specification |
STMP4AL |
STMP9AL |
STMP4DG |
STMP9DG |
| Control Type |
Analog |
Analog |
Digital |
Digital |
| Speed Range |
60 rpm to 1400 rpm |
60 rpm to 1400 rpm |
60 rpm to 1400 rpm |
60 rpm to 1400 rpm |
| Timer |
N/A |
N/A |
1 second to 160 hours |
1 second to 160 hours |
| Capacity |
4 x 1 L |
9 x 250 mL |
4 x 1L |
9 x 250 mL |
| Plate Construction |
Glass Filled Nylon |
Glass Filled Nylon |
Glass Filled Nylon |
Glass Filled Nylon |
| Dimensions (H x L x W) |
4 x 17 x 11 in. / 10.2 x 43.2 x 27.9 cm |
| Plate Dimensions (L x W) |
12.5 x 11 in. / 31.8 x 27.9 cm |
| Net Weight |
14 lb. / 6.3 kg |
| Power |
120 V, 50/60 Hz |
| Power Consumption |
75 W |
75 W |
90 W |
90 W |
| Working Environment |
41 °F – 104 °F, 80% RH*, non-condensing / 5 °C – 40 °C, 80% RH*, non-condensing |
*RH = Relative Humidity
Safety and Compliance
Product Safety: CAN/CSA C22.2 No. 61010-1, CAN/CSA C22.2 No. 61010-2-051, UL 61010-1, UL 61010-2-051
Electromagnetic Compatibility: ICES-003 Class A, FCC Part 15 Class A
Compliance Marks: UL
Available Accessories
- Spinbar, 2.5 cm, PTFE (Part Number: 30400147)
