USA Incubators

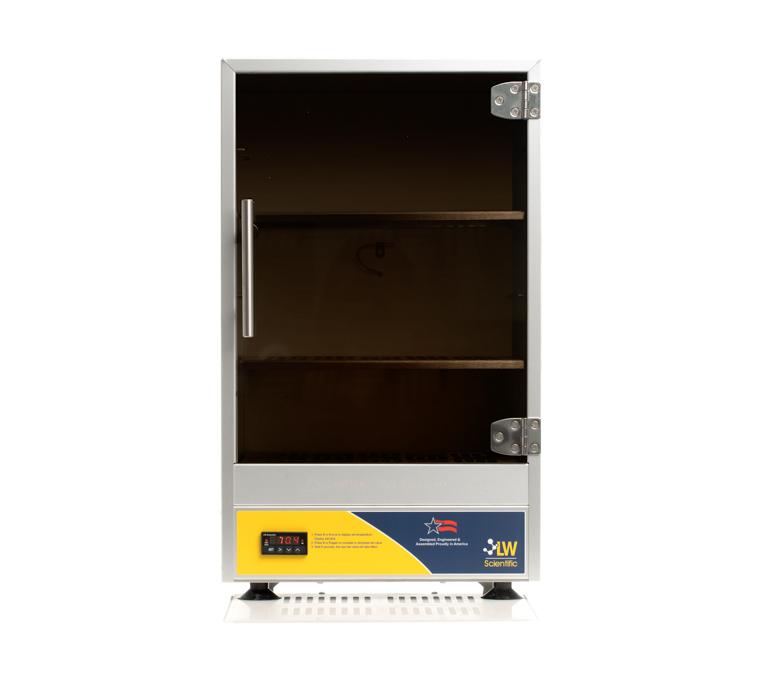

The digitally controlled USA Incubators are perfect for various applications such as cultures, egg incubation, test kits, fluid bag warming, and other microbiological uses in pediatric, physician, and hospital labs. These incubators provide better temperature stability and accuracy with digital PID microprocessor controls, and the convection heat provides excellent heat distribution and uniformity. The LED temperature display shows constant temperature in Celsius or Fahrenheit, and the aluminum and stainless steel components are corrosion resistant and easy to clean. Economical and dependable, these incubators are perfect for labs requiring better temperature accuracy and a small footprint.
Features
- Designed, engineered, and assembled in the USA
- Adjustable shelves
- Digital PID microprocessor controls for better temperature stability and accuracy
- Convection heat for excellent heat distribution and uniformity
- LED temperature display in Celsius or Fahrenheit
- Corrosion resistant aluminum and stainless steel components
- Easy to clean
- Small footprint
Construction
- Anodized aluminum and stainless steel
- Acrylic see-through door
- Adjustable stainless steel shelves
- Suction-cupped rubber feet
Controls
- PID Controller
- Simple keypad input
- Digital LED display
Temperature
- Range: Ambient +2°C to 65°C
- Accuracy: +/- 0.5°C
- Programmable temperature correction
Alarm
Visual alarm alerts when actual internal temperature exceeds programmed temperature
Power
300 watt/115v AC
Included Accessories
- 10 Liter: 1 adjustable shelf
- 20 / 30 Liter: 2 adjustable shelves
Available Models
| Model # |
Description |
| ICL-010L-D031 |
Incubator, 10L (.35cu ft), Max temp 65°C (150°F), Digital Controls, 110vAC, 50/60hz |
| ICL-020L-D071 |
Incubator, 20L (.7cu ft), Max temp 65°C (150°F), Digital Controls, 110vAC, 50/60hz |
| ICL-030L-D101 |
Incubator, 30L (1.1cu ft), Max temp 65°C (150°F), Digital Controls, 110vAC, 50/60hz |
| ICL-010L-D032 |
Incubator, 10L (.35cu ft), Max temp 65°C (150°F), Digital Controls, 220vAC, 50/60hz |
| ICL-020L-D072 |
Incubator, 20L (.7cu ft), Max temp 65°C (150°F), Digital Controls, 220vAC, 50/60hz |
| ICL-030L-D102 |
Incubator, 30L (1.1cu ft), Max temp 65°C (150°F), Digital Controls, 220vAC, 50/60hz |
Specifications
10 Liter (.35 cu ft) Capacity
| Specification |
Inches |
Millimeters |
| Interior Dimensions |
11.8 x 9.8 x 5.3 |
300 x 250 x 135 |
| Exterior Dimensions |
12.9 x 11.7 x 11.7 |
328 x 297 x 292 |
| Packaging |
16 x 16.5 x 16 |
406 x 419 x 406 |
Actual Weight: 13.25lbs (6.0kg)
Shipping Weight: 17lbs (7.7kg)
20 Liter (.7 cu ft) Capacity
| Specification |
Inches |
Millimeters |
| Interior Dimensions |
11.8 x 9.8 x 10.6 |
300 x 250 x 268 |
| Exterior Dimensions |
12.9 x 11.7 x 16.8 |
328 x 297 x 427 |
| Packaging |
16 x 16.5 x 21.2 |
406 x 419 x 538 |
Actual Weight: 14.70lbs (6.6kg)
Shipping Weight: 19.45lbs (8.8kg)
30 Liter (1.1 cu ft) Capacity
| Specification |
Inches |
Millimeters |
| Interior Dimensions |
11.8 x 9.8 x 15.8 |
300 x 250 x 402 |
| Exterior Dimensions |
12.9 x 11.7 x 22 |
328 x 297 x 559 |
| Packaging |
16 x 16.5 x 26.5 |
406 x 419 x 673 |
Actual Weight: 17.75lbs (8.0kg)
Shipping Weight: 23lbs (10.4kg)
