Multi-Tube Vortex Mixers
Multi-Tube Vortexers are ideal for high throughput sample processing. Interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter available. Vortexing action is created by securing the top of the sample in place while allowing the bottom to rotate freely in a 3.6 mm orbit. Suction cup feet reduce motion and prevent sliding on work surface. Analog and digital models, both microprocessor-controlled and run in continuous or timed mode.
- Digital Models Ideal for Applications that Require Accuracy and Repeatability
- Pulsing Mode on Digital Models to Enhance Vortexing Action
- Analog Model Offers an Economical Alternative When Exact Speed/Time Not Required
- Process up to 50 samples at a time
- Continuous or timed operation
Applications
Suspensions, high throughput testing in clinical, environmental, and chemistry labs.
Analog Multi-Tube Vortexer
Conveniently angled front panel features rocker switch for run, time and standby modes. One piece, stainless steel housing design optimizes clean-ups. Ideal for applications requiring accuracy and repeatability. The stainless steel one piece housing design is conducive to keeping your vortexer clean and free from contaminants.
Operating Features
- Microprocessor Control: The variable speed microprocessor control provides consistent uniform mixing action
- Adjustment Knobs: Basic speed and time knobs with 1 to 10 dial markings
- Operating Conditions: Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing
Ordering Information
Unit includes a detachable, 3-wire cord and plug. Unit is also supplied with a Tray Pad Set for support and one 12 mm Test Tube Foam Rack (30400239).
| Description |
Model |
Item Number |
| Analog Multi-Tube Vortexer |
VXMTAL |
30392164 |
Specifications
| Parameter |
Value |
| Speed Range* |
1200 to 2400 rpm |
| Timer |
0 to 60 seconds |
| Orbit |
3.6 mm (0.14") |
| Maximum Weight Capacity |
10 lbs (4.5 kg) |
| Duty Rating |
Continuous duty |
| Tray Dimensions (L × W) |
7.25 × 12.25" (18.4 × 31.1 cm) |
| Overall Dimensions (L × W × H) |
9.5 × 15.1 × 16" (24.1 × 38.4 × 40.6 cm) |
| Ship Weight |
42 lbs (19.1 kg) |
* Maximum speed will vary depending on load.

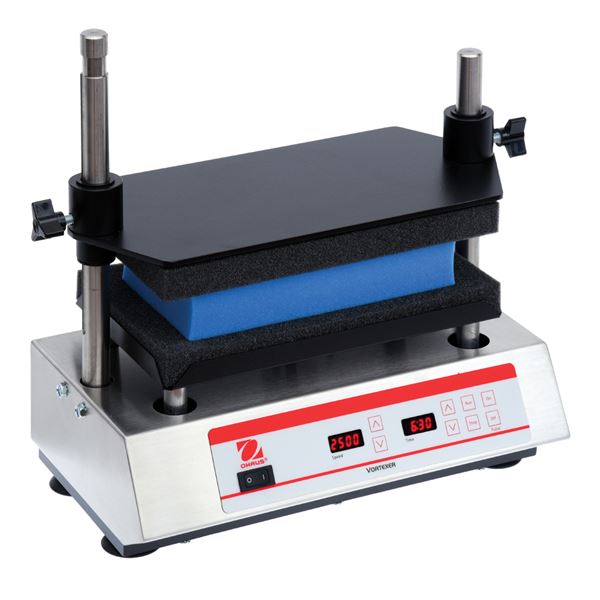

Digital Multi-Tube Vortexer
Ideal for applications requiring accuracy and repeatability. One piece, stainless steel housing design optimizes clean-ups. The stainless steel one piece housing design is conducive to keeping your vortexer clean and free from contaminants.
- LED displays for speed and time
- Pulsing mode
Operating Features
- Microprocessor Control: The variable speed microprocessor control provides consistent uniform mixing action
- LED Display: Touch pad controls with easy-to-read, independent LED displays for speed and time allow operator to view both settings at once. Provides repeatable and accurate results every time and is easily visible across lab benches. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off
- Pulsing Mode: Programmable pulsing mode allows user to adjust the pulse-on and pulse-off times between 1 and 59 seconds in 1 second intervals. This feature enhances the vortex action by creating a more vigorous mix
- Operating Conditions: Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing
Ordering Information
Unit includes a detachable, 3-wire cord and plug. Unit is also supplied with a Tray Pad Set for support and one 12 mm Test Tube Foam Rack (30400239).
| Description |
Model |
Item Number |
| Digital Multi-Tube Vortexer |
VXMTDG |
30392171 |
Specifications
| Parameter |
Value |
| Speed Range* |
500 to 2500 rpm |
| Speed Accuracy |
± 25 rpm |
| Timer |
1 second to 160 hours |
| Orbit |
3.6 mm (0.14") |
| Maximum Weight Capacity |
10 lbs (4.5 kg) |
| Duty Rating |
Continuous duty |
| Tray Dimensions (L × W) |
7.25 × 12.25" (18.4 × 31.1 cm) |
| Overall Dimensions (L × W × H) |
9.5 × 15.1 × 16" (24.1 × 38.4 × 40.6 cm) |
| Ship Weight |
42 lbs (19.1 kg) |
* Maximum speed will vary depending on load.
Accessories
Post Extension Kit
Adds 6" (15.2 cm) to the post of the Multi-Tube Vortex Mixer to accommodate tubes up to 10" (25.4 cm) tall.
| Description |
Item Number |
| Post Extension Kit |
30400244 |
Foam Test Tube Racks
| Description |
Tube Capacity |
Color |
Dimensions (L × W × H) |
Item Number |
| 10 mm Test Tube Foam Rack |
50 |
Gray |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400238 |
| 12 mm Test Tube Foam Rack |
50 |
Blue |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400239 |
| 13 mm Test Tube Foam Rack |
50 |
Yellow |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400240 |
| 16 mm Test Tube Foam Rack (for 15 mL centrifuge tubes) |
50 |
Green |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400241 |
| 25 mm Test Tube Foam Rack |
28 |
White |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400243 |
| 29 mm Test Tube Foam Rack (for 50 mL centrifuge tubes) |
15 |
Red |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400242 |
| Replacement Tray Pad Set (upper & lower) |
N/A |
Gray |
7 × 12 × 1" (17.8 × 30.5 × 2.5 cm) |
30400245 |
