Multi-Tube Vortex Mixers
Multi-Tube Vortexers are ideal for high throughput sample processing with interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter. Vortexing action is created by securing the top of the sample in place while allowing the bottom to rotate freely in a 3.6 mm orbit. Suction cup feet reduce motion and prevent sliding on work surface. Available in analog and digital models, both microprocessor-controlled and capable of running in continuous or timed mode.
Key Features
- Process up to 50 samples at a time
- Continuous or timed operation
- Includes foam rack for 12 mm tubes
- One piece, stainless steel housing design optimizes clean-ups
- Microprocessor control provides consistent uniform mixing action
- Conveniently angled front panel features rocker switch for run, time and standby modes
- Suction cup feet reduce motion and prevent sliding
Applications
- Suspensions
- High throughput testing in clinical labs
- Environmental labs
- Chemistry labs

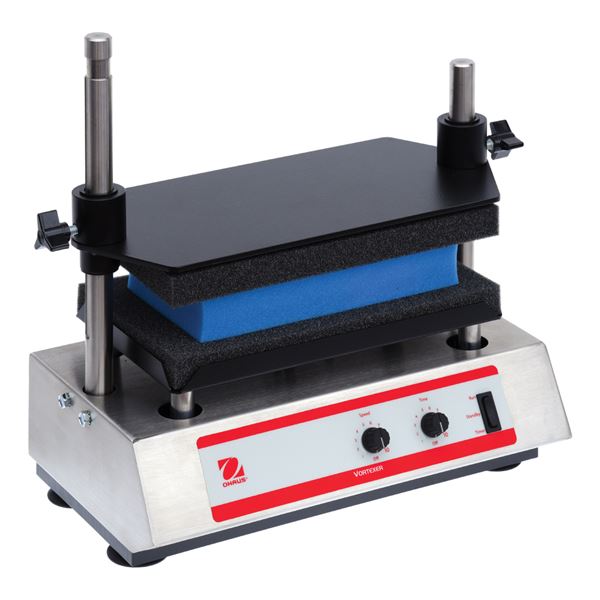

Analog Multi-Tube Vortexer
Model: VXMTAL
Item Number: 30392164
Economical alternative when exact speed/time is not required. Basic speed and time knobs with 1 to 10 dial markings provide simple operation.
Specifications
| Parameter |
Value |
| Speed Range* |
1200 to 2400 rpm |
| Timer |
0 to 60 seconds |
| Orbit |
3.6 mm (0.14") |
| Maximum Weight Capacity |
10 lbs (4.5 kg) |
| Duty Rating |
Continuous duty |
| Tray Dimensions (L × W) |
7.25 × 12.25" (18.4 × 31.1 cm) |
| Overall Dimensions (L × W × H) |
9.5 × 15.1 × 16" (24.1 × 38.4 × 40.6 cm) |
| Ship Weight |
42 lbs (19.1 kg) |
* Maximum speed will vary depending on load.
Operating Conditions
Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing.
Included Items
- Detachable, 3-wire cord and plug
- Tray Pad Set for support
- 12 mm Test Tube Foam Rack (30400239)
Digital Multi-Tube Vortexer
Model: VXMTDG
Item Number: 30392171
Ideal for applications requiring accuracy and repeatability. Features LED displays for speed and time, touch pad controls, and programmable pulsing mode to enhance vortexing action.
Digital Model Features
- LED displays for speed and time
- Touch pad controls with easy-to-read, independent LED displays allow operator to view both settings at once
- Display shows last used settings, even after power has been turned off
- Timer displays elapsed time or, when programmed to user defined limit, shuts off unit when time reaches zero
- Pulsing mode: Programmable pulsing mode allows user to adjust the pulse-on and pulse-off times between 1 and 59 seconds in 1 second intervals
- Provides repeatable and accurate results
Specifications
| Parameter |
Value |
| Speed Range* |
500 to 2500 rpm |
| Speed Accuracy |
± 25 rpm |
| Timer |
1 second to 160 hours |
| Orbit |
3.6 mm (0.14") |
| Maximum Weight Capacity |
10 lbs (4.5 kg) |
| Duty Rating |
Continuous duty |
| Tray Dimensions (L × W) |
7.25 × 12.25" (18.4 × 31.1 cm) |
| Overall Dimensions (L × W × H) |
9.5 × 15.1 × 16" (24.1 × 38.4 × 40.6 cm) |
| Ship Weight |
42 lbs (19.1 kg) |
* Maximum speed will vary depending on load.
Operating Conditions
Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing.
Included Items
- Detachable, 3-wire cord and plug
- Tray Pad Set for support
- 12 mm Test Tube Foam Rack (30400239)
Accessories
Post Extension Kit
Item Number: 30400244
Adds 6" (15.2 cm) to the post of the Multi-Tube Vortex Mixer to accommodate tubes up to 10" (25.4 cm) tall.
Foam Test Tube Racks
| Description |
Tube Capacity |
Color |
Dimensions (L × W × H) |
Item Number |
| 10 mm Test Tube Foam Rack |
50 |
Gray |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400238 |
| 12 mm Test Tube Foam Rack |
50 |
Blue |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400239 |
| 13 mm Test Tube Foam Rack |
50 |
Yellow |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400240 |
| 16 mm Test Tube Foam Rack (for 15 mL centrifuge tubes) |
50 |
Green |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400241 |
| 25 mm Test Tube Foam Rack |
28 |
White |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400243 |
| 29 mm Test Tube Foam Rack (for 50 mL centrifuge tubes) |
15 |
Red |
5.5 × 9.5 × 2" (14 × 24.1 × 5.1 cm) |
30400242 |
| Replacement Tray Pad Set (upper & lower) |
N/A |
Gray |
7 × 12 × 1" (17.8 × 30.5 × 2.5 cm) |
30400245 |
