Mini Vortex Mixers
Four Mini Vortex Mixer models for gentle to high-speed mixing are available. Analog model offers variable speed control, and digital model allows input of the exact speed and time to achieve reproducible results. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers one-touch, high-speed mixing.
- Select from Two Modes of Operation—Touch or Continuous
- Variable Speed Models Offer Low RPM Start Up to High-Speed Mixing
- Fixed Speed Models Provide Full RPM for Vigorous Mixing

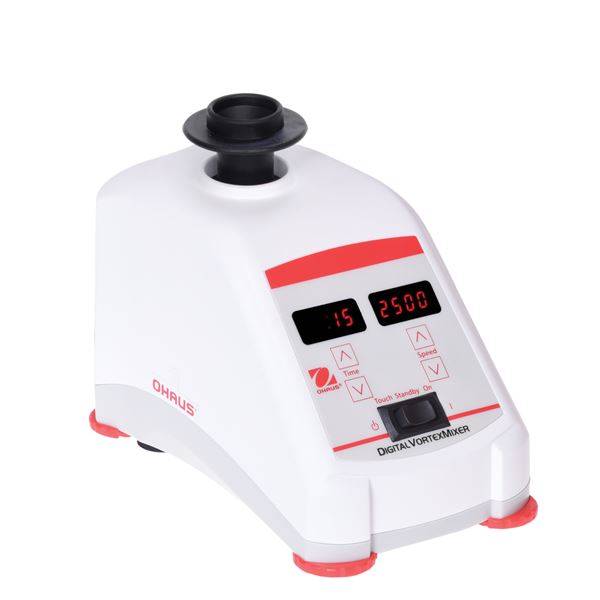

Digital Vortex Mixer
Model VXMNDG
Built sturdy to provide stable and reliable vortexing action. Ideal for applications that demand repeatable results. Microprocessor control maintains set speed for strong, consistent mixing action. Timer will display elapsed time or, when programmed to user defined time limit, the unit will shut off when time reaches zero. Two modes of operation; continuous mode when using accessory attachments or touch mode which activates mixing when depressing the cup head.
- Sturdy design
- LED displays for speed and time
- Continuous or touch mode operation
Specifications
| Parameter |
Specification |
| Model |
VXMNDG |
| Item Number |
30392122 |
| Speed Range* 120V |
500 to 3000 rpm |
| Timer |
1 second to 160 hours |
| Orbit |
4.9 mm (0.19") |
| Controls |
Auto/Standby/On Rocker Switch, LED Displays for Speed/Time, Up/Down Buttons for Set-Point Control |
| Duty Rating |
Intermittent duty |
| Dimensions (L × W × H) |
8.3" × 4.8" × 6.5" (21.1 × 12.2 × 16.5 cm) |
| Ship Weight |
10 lbs (4.5 kg) |
Operating Conditions: Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing.
* Maximum speed will vary depending on accessory used.
Product Includes
- 3-wire cord and plug
- Cup Head (Item Number 30400235)
- 3" (7.6 cm) Head (Item Number 30400236)
- 3" (7.6 cm) Rubber Head Cover (Item Number 30400237)
Pulsing Vortex Mixer
Model VXMNPS
Built sturdy to provide stable and reliable vortexing action. Powerful pulsing vortex action produces excellent cell disruption for glass bead procedures. Capable of complete cell disruption of samples in only minutes. Unique pulsing action reduces heat generation while providing more effective mixing and disruption. Displayed time counts up during continuous operation and counts down during timed runs.
- Sturdy design
- LED displays for time and speed
- Glass bead cell disruption/homogenization
Specifications
| Parameter |
Specification |
| Model |
VXMNPS |
| Item Number |
30392129 |
| Speed Range* 120V |
500 to 3000 rpm |
| Timer |
1 second to 160 hours |
| Orbit |
2.5 mm (0.098") |
| Controls |
Auto/Standby/On Rocker Switch, LED Displays for Speed/Time, Up/Down Buttons for Set-Point Control, Pulse Button |
| Duty Rating |
Intermittent duty |
| Dimensions (L × W × H) |
8.3" × 4.8" × 6.5" (21.1 × 12.2 × 16.5 cm) |
| Ship Weight |
10 lbs (4.5 kg) |
Operating Conditions: Unit can be run in conditions from 4 to 40°C (39 to 104°F), 20% to 85% relative humidity, non-condensing.
* Maximum speed will vary depending on accessory used.
Product Includes
- 3-wire cord and plug
- Cup Head (Item Number 30400235)
- 3" (7.6 cm) Head (Item Number 30400236)
- 3" (7.6 cm) Rubber Head Cover (Item Number 30400237)
- Stainless Steel Tube Holder (Item Number 30400206) - easy-to-load 1.5 mL to 2 mL Micro-Tube Holder with built-in cup head
Accessories
Micro-Tube Holder
Mixes (48) 0.25 to 2 mL micro-tubes. Requires Insert Retainer.
| Micro-Tube Holder (2 pack) |
30400232 |
| Insert Retainer |
30400227 |
9 to 13 mm Tube Holder
Ideal for mixing 5 mL culture tubes and micro-vials. Requires Insert Retainer.
| 9 to 13 mm Tube Holder (2 pack) |
30400229 |
| Insert Retainer |
30400227 |
14 to 19 mm Tube Holder
Ideal for mixing up to (8) 15 mL centrifuge tubes. Requires Insert Retainer.
| 14 to 19 mm Tube Holder (2 pack) |
30400230 |
| Insert Retainer |
30400227 |
20 to 25 mm Tube Holder
Ideal for mixing up to (8) 50 mL centrifuge tubes. Requires Insert Retainer.
| 20 to 25 mm Tube Holder (2 pack) |
30400231 |
| Insert Retainer |
30400227 |
Vessel Harness
Mixes Erlenmeyer flasks and media bottles. Requires Insert Retainer.
| Vessel Harness (2 pack) |
30400228 |
| Insert Retainer |
30400227 |
Cup Head
Designed for mixing 1 tube at a time.
3" Rubber Head Cover and 3" Head
Designed for mixing irregular shaped objects.
| 3" (7.6 cm) Rubber Head Cover |
30400196 |
| 3" (7.6 cm) Head |
30400236 |
| 3" (7.6 cm) Head with Rubber Cover |
30400237 |
Microplate Holder
Ideal for mixing 96-well plates or deep well blocks. Requires Insert Retainer.
| Microplate Holder (2 pack) |
30400233 |
| Insert Retainer |
30400227 |
Flat Foam Insert
Ideal for custom applications. Can be cut or drilled to fit your specifications. Requires Insert Retainer.
| Flat Foam Insert (2 pack) |
30400234 |
| Insert Retainer |
30400227 |
Micro-Tube and Microplate Holder Kit
Includes: 1 Micro-Tube Holder, 1 Microplate Holder, 1 Insert Retainer
| Micro-Tube & Microplate Holder Kit |
30400198 |
Microwell Kit with Retainer
Includes: 2 Microplate Holders, 1 Insert Retainer
| Microwell Kit with Retainer |
30400199 |
Microtube Kit with Retainer
Includes: 2 Micro-Tube Holders, 1 Insert Retainer
| Microtube Kit with /Retainer |
30400200 |
Foam Insert Variety Pack
Includes: (1) 9 to 13 mm Tube Holder, (1) 14 to 19 mm Tube Holder, (1) 20 to 25 mm Tube Holder, 1 Flat Foam Insert
| Foam Insert Variety Pack |
30400201 |
Tube Holder Kit
Includes: (1) 9 to 13 mm Tube Holder, (1) 14 to 19 mm Tube Holder, (1) 20 to 25 mm Tube Holder, 1 Flat Foam Insert, 2 Vessel Harnesses, 1 Insert Retainer
Ampule Tube Holder
Mixes up to 4 storage vials and test tubes.
| 15 to 17 mm Ampule Tube Holder |
30400207 |
| 10 to 17 mm Ampule Tube Holder |
30400208 |
Stainless Steel Microtube Holder
Mixes up to (12) 1.5 to 5 mL tubes. Stainless steel construction.
| Microtube Holder |
30400206 |
Single Tube Holder
Single tube, hands free mixing. Easily attaches to the top of any Vortex Mixer with the use of a strong magnetic base. Accepts tubes from 2.5 to 4.5" (6.4 to 11.4 cm) in length. Minimum tube diameter of 0.75" (19 mm).
| Single Tube Holder |
30400202 |
Single Tube Holder Accessories
Requires Single Tube Holder.
0.5 mL Micro-Tube Holder
Mixes (24) 0.5 mL micro-tubes. For use with Single Tube Holder.
| Micro-Tube Holder (0.5 mL) |
30400204 |
1.5 mL to 2.0 mL Micro-Tube Holder
Mixes (18) 1.5 to 2 mL micro-
