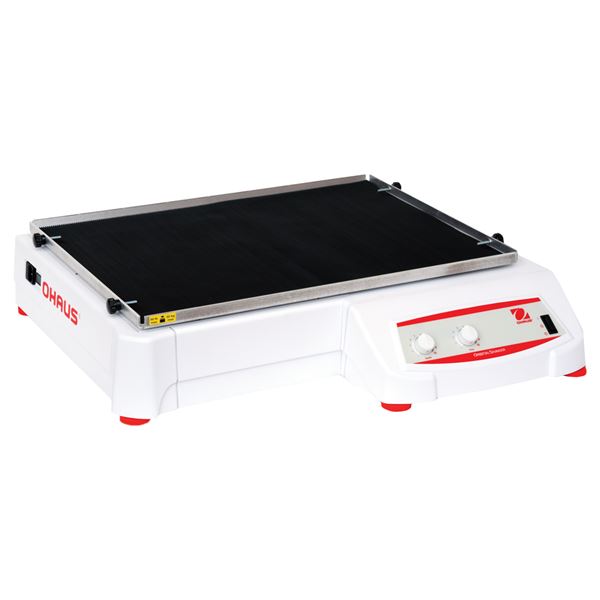

Variable Speed Orbital Shaker

Made in United States
Ships from United States
https://www.labequip.com/web/image/product.template/34296/image_1920?unique=2cae3cc

With load capacities from 35 to 150 lb and over 70 accessory options, OHAUS Heavy Duty Shakers are designed to handle a range of applications. Available as analog or digital models with microprocessor control to provide variable speed and consistent shaking, while ramping to the set speed. Microprocessor displays the last set-point and will restart if power is interrupted. Built-in tray and non-slip rubber mat included with all models.

Applications: Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation: Detachable 3-wire cord and plug (included)
Communication: RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction: Cold rolled steel (CRS)
Design Features: Built-in tray (18 x 24") with a non-slip rubber mat (included)

SHHD2325AL (30391835) SPECIFICATIONS:
~ Speed Range: 25 to 500rpm
~ Timer: 1 minute to 120 minutes
~ Orbit: 25mm (1 in.)
~ Maximum Weight: Capacity 50lbs (22.7kg)
~ Tray Material: Aluminum
~ Audible Alarm: NO
~ Load Sensor: NO
~ CO2 Environment Safe: YES
~ Overload Protection: NO
~ User Calibration (speed): NO
~ RS-232 Interface: NO

$ 5,913.00 5913.0 USD $ 5,913.00

$ 1.00

Not Available For Sale

This combination does not exist.

Contact Us
General Testing

Terms and Conditions


Stock Number N1772
Model SHHD2325AL (30391835)
Manufacturer OHAUS
Product Brochure
Warranty 2 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:
Built-in tray (18 x 24") with a non-slip rubber mat

OPTIONAL ACCESSORIES AVAIABLE AT ADDITIONAL COST:
30400056 Universal Platform, 61 × 46 cm
30400058 Universal Platform, 76 × 46 cm
30400067 Culture Platform with Mat, 46 × 61 cm
30400069 Adjustable Platform, 61 × 46 cm
30400070 Large Vessel Carrier, 76 × 46 cm
**flask clamps sizes 10ml to 6L depending on size of platform chosen**

Elc TUV
Inside Included Tray: 18 x 24"
Outside 24 x 26.7 x 5.9 in.H

Heavy Duty Orbital Shakers

OHAUS Heavy Duty Shakers deliver versatile shaking performance with eight model configurations offering load capacities from 35 to 150 lb (16 to 68 kg). These robust shakers accommodate diverse laboratory needs through analog and digital control options, variable speed operation, and compatibility with over 70 accessory options. All models include a built-in tray and non-slip rubber mat for immediate use.

Applications

  • Cell cultures
  • Solubility studies
  • Extractions
  • Bacteria and yeast cultures and suspensions
  • Staining/destaining
  • Immunoassays
  • Protein studies
  • Blotting techniques

Key Performance Features

Accu-Drive Shaking System

The exclusive Accu-Drive shaking system on digital models utilizes dual-speed sensors to continuously monitor and maintain shaking speed, delivering exceptional speed control, accuracy and durability.

Advanced Digital Controls

Digital models feature touchpad controls with independent LED displays for speed and time, allowing operators to view all settings simultaneously. The timer displays elapsed time or, when programmed to a set time, automatically turns off when time reaches zero.

Safety and Sample Protection

Speed ramping feature slowly increases the speed to desired setpoint to avoid splashing. The load sensor on digital models detects unbalanced conditions and automatically reduces rpm to a safe speed to protect samples. Microprocessor displays the last set-point and will restart if power is interrupted.

Technical Specifications

Model SHHD1619AL SHHD1619DG SHHD2325AL SHHD2325DG SHHD4525DG SHHD4550DG SHHD6825DG SHHD6850DG
Control Analog Digital Analog Digital Digital
Motion Orbital, 0.75 in. / 19 mm Orbital, 1 in. / 25 mm Orbital, 2 in. / 51 mm Orbital, 1 in. / 25 mm Orbital, 2 in. / 51 mm
Speed Range 25 to 500 rpm 15 to 500 rpm 25 to 500 rpm 20 to 500 rpm 15 to 500 rpm 15 to 300 rpm 15 to 500 rpm 15 to 300 rpm
Speed Accuracy N/A Above 100 rpm ± 1% of set speed, below 100 rpm ± 1 rpm N/A Above 100 rpm ± 1% of set speed, below 100 rpm ± 1 rpm
Timer 1 minute to 120 minutes 1 second to 160 hours 1 minute to 120 minutes 1 second to 160 hours
Max. Weight Capacity 35 lb / 16 kg 50 lb / 22.7 kg 100 lb / 45.4 kg 150 lb / 68 kg
Audible Alarm — • — • • • • •
Load Sensor — • — • • • • •
Overload Protection — • — • • • • •
User Calibration (Speed) — • — • • • • •
RS232 Interface — • — • • • • •
Working Environment 32 °F – 104 °F / 0 °C – 40 °C, 80% RH, non-condensing 14 °F – 140 °F / -10 °C – 60 °C, 80% RH, non-condensing 14 °F – 140 °F / -10 °C – 60 °C, 80% RH, non-condensing
Drive System Brushless DC Motor; Triple Eccentric
Included Tray (L × W) 11 × 13 in. 18 × 24 in. 24 × 24 in. 24 × 36 in.
Overall Dimensions (L × W × H) 16.3 × 14 × 5.9 in. 24 × 26.7 × 5.9 in. 28.7 × 26.7 × 6.7 in. 29.3 × 36 × 6.7 in.
Net Weight 48 lb 108 lb 199 lb 229 lb
Power 120V, 5A, 50/60Hz
Power Consumption 75 W 80 W

Compliance

Product Safety

  • CAN/CSA C22.2 61010-1
  • CAN/CSA C22.2 61010-2-051
  • UL 61010-1

Electromagnetic Compatibility

  • ICES-003 Class A
  • FCC Part 15 Class A

Compliance Marks

  • TÜV SÜD

Standard Equipment

  • Built-in tray with non-slip rubber mat

Platform Accessories

Item No. Description Stackable SHHD1619AL SHHD1619DG SHHD2325AL SHHD2325DG SHHD4525DG SHHD4550DG SHHD6825DG SHHD6850DG
30400052 Universal Platform, 28 × 33 cm Not Stackable • •
30400053 Universal Platform, 33 × 33 cm Not Stackable • •
30400054 Universal Platform, 46 × 46 cm Stackable • •
30400056 Universal Platform, 61 × 46 cm Stackable** • • • •
30400057 Universal Platform, 61 × 61 cm Not Stackable • •
30400058 Universal Platform, 76 × 46 cm Stackable • •
30400059 Universal Platform, 91 × 61 cm Not Stackable • •
30400066 Culture Platform with Mat, 46 × 46 cm Stackable • •
30400067 Culture Platform with Mat, 46 × 61 cm Stackable** • • • •
30400068 Adjustable Platform, 46 × 46 cm Not Stackable • •
30400069 Adjustable Platform, 61 × 46 cm Not Stackable • •
30400070 Large Vessel Carrier, 76 × 46 cm Not Stackable • •
30400071 Large Vessel Carrier, 61 × 61 cm Not Stackable • •
30400072 Large Vessel Carrier, 91 × 61 cm Not Stackable • •
30400075 Dedicated Platform,
