Block Heater

Dry Block Heaters

Designed for applications that require repeatable results and superior temperature stability. These multi-purpose units are ideal for incubation and activation of cultures, enzyme reactions, immunoassays, melting/boiling points, and a wide variety of other laboratory procedures. Each of the five models accepts separate interchangeable modular blocks, accommodating various tube sizes from 0.2 mL micro-tubes to 50 mL centrifuge tubes. Efficient heating due to close tube-and-block contact for maximum heat retention.

Key Features

• Exceptional temperature uniformity and stability
• Holds interchangeable modular blocks
• Optional external temperature probe
• Each block has a thermometer well for measuring block temperature
• Integral support rod holder with locking knob accepts optional External Temperature Probe Kit

Available Models

Two series of Dry Block Heaters are available: Microprocessor-Controlled Digital Models and Analog Control Models. Heaters require modular heating blocks for operation. Modular blocks are sold separately.

Microprocessor-Controlled Digital Models

Operating Features

Microprocessor Control: PID temperature control, with optional external RTD probe, offers a temperature stability as low as ± 0.1°C with a temperature uniformity as low as ± 0.1°C. Samples are heated to temperature quickly and accurately. Temperature is adjusted in ± 0.1°C increments.

LED Display: Touch pad controls with easy-to-read, independent LED displays for temperature, and time. Provides repeatable and accurate results every time and is easily visible across lab benches. Shows set-point and actual temperature. Timer will display elapsed time or, when programmed to user defined limit, will shut off unit when time reaches zero. Display will show last used settings, even after power has been turned off.

Temperature Calibration Mode: Allows user to calibrate unit to an external temperature device.

Safety Features

• Caution Hot Indicator: Hot warning symbol light is illuminated when the temperature is above 40°C
• Overshoot Protection: If the unit exceeds the set temperature by 10°C the unit will automatically stop heating
• Audible Alarm: In timed mode, alarm will sound when time reaches zero and when unit reaches set-point temperature

Performance Specifications - Digital Models

Applications

• Denaturing proteins
• DNA applications
• ELISA and other immunoassay studies

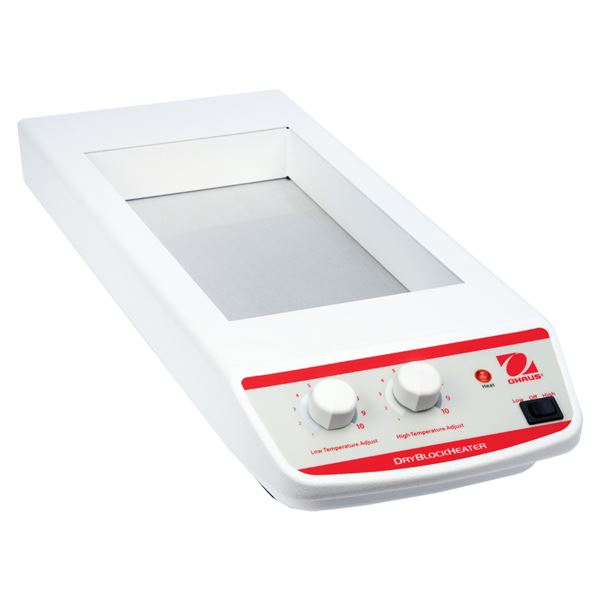

Analog Control Models

Operating Features

High wattage, constant-temperature Dry Block Heaters are economical, versatile and compact. These multi-purpose units accommodate various sample enclosures such as micro-tubes, centrifuge tubes, vials, microplates, and PCR strips or tubes. Anodized aluminum modular blocks provide superior temperature stability and heat transfer.

Microprocessor Control: PID temperature controller maintains precise temperature control. Samples are heated to temperature quickly and accurately.

Adjustment Knobs: Dual temperature control knobs with dial markings from 1 to 10 for low temperature and high temperature adjustments. Low range knob adjusts from ambient to 100°C and high range knob adjusts from 75°C to 150°C.

Performance Specifications - Analog Models

Applications

• Coagulation and RH Studies

Operating Conditions

Units can be run in conditions from 18 to 33°C (64 to 91°F), 20% to 80% relative humidity, non-condensing.

Important Safety Information

CAUTION! To avoid possible electrical hazard, do not fill well or block opening with water or other fluids. Unit is designed as a dry bath/incubator.

What's Included

Units include a detachable, 3-wire cord and plug. Modular blocks are sold separately.

Modular Blocks & Accessories

Modular blocks are constructed from a solid anodized aluminum block. The close contact of tubes-to-block walls allow for maximum heat retention. Each block has a thermometer well for measuring block temperature.

Single block dimensions (L × W × H): 3.75 × 3 × 2" (9.5 × 7.6 × 5.1 cm)

Double block dimensions (L × W × H): 6 × 3.75 × 2.25" (15.2 × 9.5 × 5.7 cm)

Microcentrifuge Tube Blocks

Single block

Titer Plate Block

Double block. Fits 2/4/6 block Dry Block Heaters. Ideal for 96-well or 384-well titer plates. Recessed well for better stability, flat surface good for flat and round bottom plates.

Conical-Bottom Centrifuge Tube Blocks

Single block

Standard Test Tube Blocks

Single block

Combination Blocks

Single block. These blocks have been designed for variable sized samples.

Test Tube Combination Block - Item Number 30400156
