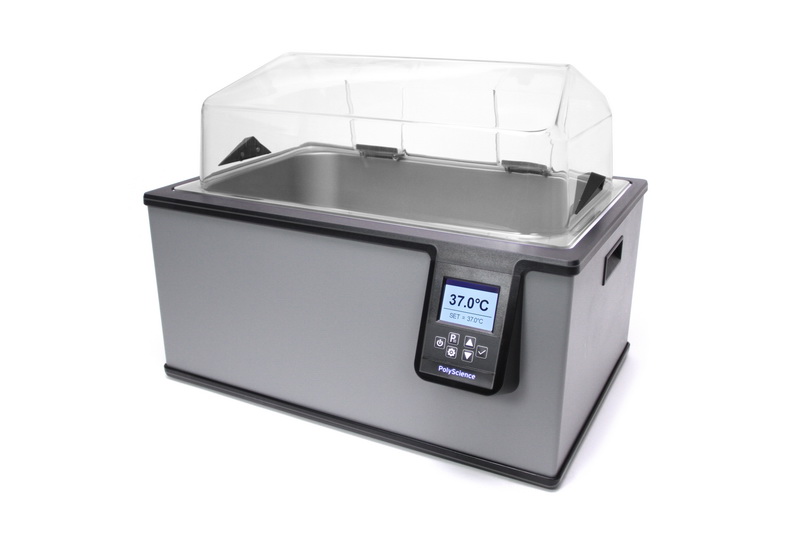

Premium Digital Water Baths
Premium digital unstirred water baths designed for general purpose laboratory applications. Available in five reservoir sizes from 2 to 28 liters, these water baths combine high quality design and construction with advanced features and competitive pricing.
Features
- Full-color TFT (thin-film transistor LCD) display with adjustable brightness
- Five preset programs allow user to set temperature and duration
- Calibration offset feature
- Integrated independent timer
- Clear, hinged high-gabled cover
- Redundant safety thermostat
- Recessed handles for easy positioning
- User-selectable language settings: English, German, French, Spanish, Chinese
- Rear-mounted drain (10, 20 and 28 liter models)
- Large square buttons for easy navigation
- Adjustable brightness and dark and light interface themes
- Eco mode for heat-off operation
Display Features
- Improved readability due to enhanced contrast and 8-bit color
- Menu system for easy navigation
- Alarms and faults displayed across entire screen in vibrant color and explained in plain language
- High limit alarm
- Over-temperature/low liquid alarm
Temperature Preset System
- Save frequently-used temperature and time settings to presets
- User-defined duration in addition to temperature
- Bath heater automatically shuts off when program concludes
- Automatic entry to Eco Mode at conclusion of preset for low energy no-heat operation
Cover Design
The removable, hinged high-gabled cover allows condensate to drain back into the bath. Clear design maximizes visibility and accommodates taller media bottles. The hinged design tilts out of the way and keeps the lid off the lab bench.
Safety Features
- High limit alarm
- Over-temperature/low liquid alarm
- Redundant safety thermostat
- Eco mode for heat-off use
Specifications
| Model |
2L |
5L |
10L |
20L |
28L |
| Temperature Range |
Ambient +5° to 99°C |
| Temperature Stability |
±0.1°C |
| Temperature Uniformity |
±0.2°C |
| Heater Wattage |
120 |
360 |
1,000 |
1,400 |
1,400 |
| Working Access (L x W x D) |
3.9 x 4.3 x 6 in
9.9 x 10.9 x 15.2 cm |
5 x 10.8 x 6 in
12.7 x 27.4 x 15.2 cm |
10.6 x 11.6 x 6 in
26.9 x 29.5 x 15.2 cm |
9.5 x 17 x 6 in
24.1 x 43.2 x 15.2 cm |
9.5 x 17 x 8 in
24.1 x 43.2 x 20.3 cm |
| Overall Dimensions (L x W x H) |
9 x 12 x 10.5 in
22.9 x 30.5 x 26.7 cm |
14.5 x 12 x 10.5 in
36.8 x 30.5 x 26.7 cm |
15.5 x 17 x 12 in
39.3 x 43.2 x 30.5 cm |
22.5 x 17.5 x 12 in
57.2 x 44.5 x 30.5 cm |
22.5 x 17.5 x 14 in
57.2 x 44.5 x 35.6 cm |
| Electrical Requirements 120V (V/Hz/A) |
120/60/1.1 |
120/60/3.3 |
120/60/8.6 |
120/60/12 |
120/60/12 |
| Electrical Requirements 240V (V/Hz/A) |
240/50/.5 |
240/50/1.6 |
240/50/4.5 |
240/50/6 |
240/50/6 |
| Shipping Weight |
9 lbs / 4.1 kg |
14 lbs / 6.4 kg |
22 lbs / 10 kg |
25 lbs / 11.3 kg |
28 lbs / 12.7 kg |
| Part Number 120V |
WBE02A11B |
WBE05A11B |
WBE10A11B |
WBE20A11B |
WBE28A11B |
| Part Number 240V |
WBE02A12E |
WBE05A12E |
WBE10A12E |
WBE20A12E |
WBE28A12E |
Regulatory Compliance
- ETL - 60Hz
- CE - 50Hz
- RoHS2 - All Units
Accessories
| Description |
Part Number |
| Thermometer (-20 to +150°C) alcohol, non-calibrated |
099590 |
| Thermometer Holder |
700-437 |
| Floating Ball Cover: Covers top of tank, reducing heat loss by 75% and evaporation by 87%. Also reduces fumes and splashing hazards. 3/4" (20 mm) diameter, 400/package |
060301 |
Test Tube Racks
| Description |
Maximum per Sample Tray |
Part Number |
|
2L / 5L / 10L / 20L / 28L |
|
| Stainless Steel Rack, 10-13 mm, holds 15 maximum |
1 / - / - / - / - |
510-672 |
| Stainless Steel Rack, 14-18 mm, holds 15 maximum |
1 / - / - / - / - |
510-673 |
| Stainless Steel Rack, 10-13 mm, holds 30 maximum |
- / 1 / 4 / 5 / 5 |
510-674 |
| Stainless Steel Rack, 14-18 mm, holds 30 maximum |
- / 1 / 4 / 5 / 5 |
510-675 |
Bath Fluids
| Product |
Description |
Temperature Range |
Quantity |
Part Number |
| polyclean CLARIFIER |
Prevents growth of algae, keeps baths clean and odor-free. Concentrated: 8 oz (237 ml) treats approximately 200 gallons (757 liters). |
n/a |
8 oz (237 ml) |
004-300040 |
|
|
|
case = 12 x 8 oz (12 x 237 ml) |
004-300041 |
| polyclean BATH CLEANER |
For cleaning and removing rust and mineral deposits from stainless steel and polycarbonate baths. Concentrated: 8 oz (237 ml) treats approximately 16 gallons (60.5 liters). |
n/a |
8 oz (237 ml) |
004-300050 |
|
|
|
case = 12 x 8 oz (12 x 237 ml) |
004-300051 |
| polytherm M170 |
Mid-range mineral oil provides cost-effective alternative to silicone oil. For use in stainless steel and polycarbonate tanks. |
50° to 170°C (122° to 338°F) |
1 gallon (3.8 L) |
060321 |
| polyclear MIX 30 |
General purpose fluid for routine applications above 15ºC; prevents algae growth. |
15° to 90°C (59° to 194°F) |
case = 5 x 1/2 gallon (5 x 1.9 L) |
004-300062 |
Note: For all fluids except polyclean Bath Cleaner, check bath system compatibility before using.
