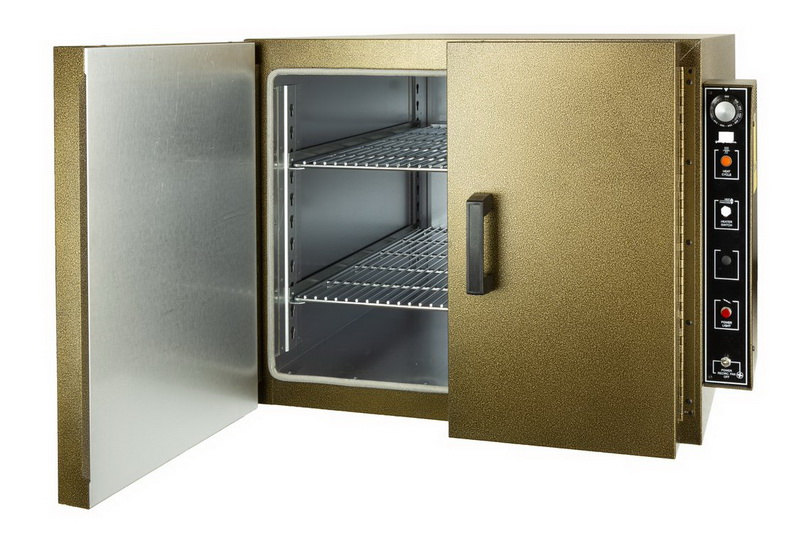

Forced-Air Oven

This series provides large bench or portable capacity.
Although there are several different models and styles, all of the bench series ovens offer fan-forced air circulation, aluminized interiors, gasketed doors, adjustable 80-lb capacity shelves, high/low heat switch, rapid run-up and recovery times, and a 6-foot cord with plug.
All ovens are fully tested prior to shipment. These ovens are perfect for: preheating, thermal testing, self-batch processing, part drying, curing, baking, evaporating or dehydrating various media and soil aggregate, as well as many other applications. All units feature large work spaces and excellent portability.

Capacity: 10.6 Cubic Feet
Temperature Range: Ambient +25 F Min. To 232°C (450°F)
Shelves (1.5 in. Centers):
~ Maximum Per Unit: 17
~ Maximum Pounds / Shelf: 80

Control Stability:
@ 100°C: ±2.5/0.5 C
@ 200°C: ±3.0/0.5 C

Uniformity:
@ 100°C: ±3.0/2.0 C
@ 200°C: ±4.0/3.0 C

Air Changes Max / Hour: 8 To 12
Max Chamber Air Velocity: 7ft/Sec

Quincy offers a variety of optional items for your specific needs, including access holes in 3 sizes, a storage cabinet or stand designed to fit the oven footprint, a high-limit analog or digital control backup, timers, a 10 in. circular chart recorder, an insulated door window, a chamber light, and an exhaust chamber adaptor to connect to a 3 in. vent. Please inquire details for details and costs.

***Available with a stainless steel interior for additional cost. Please request details and pricing.***

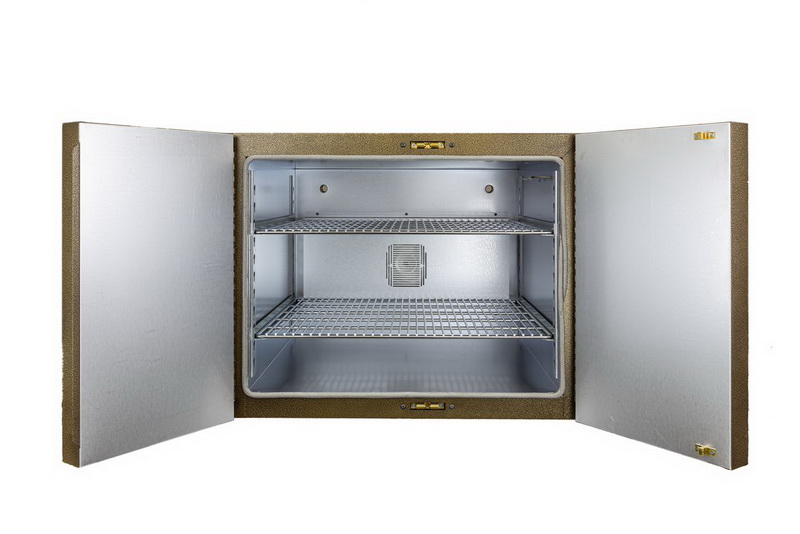

This oven comes with 2 shelves. Can hold up to 17 shelves.
