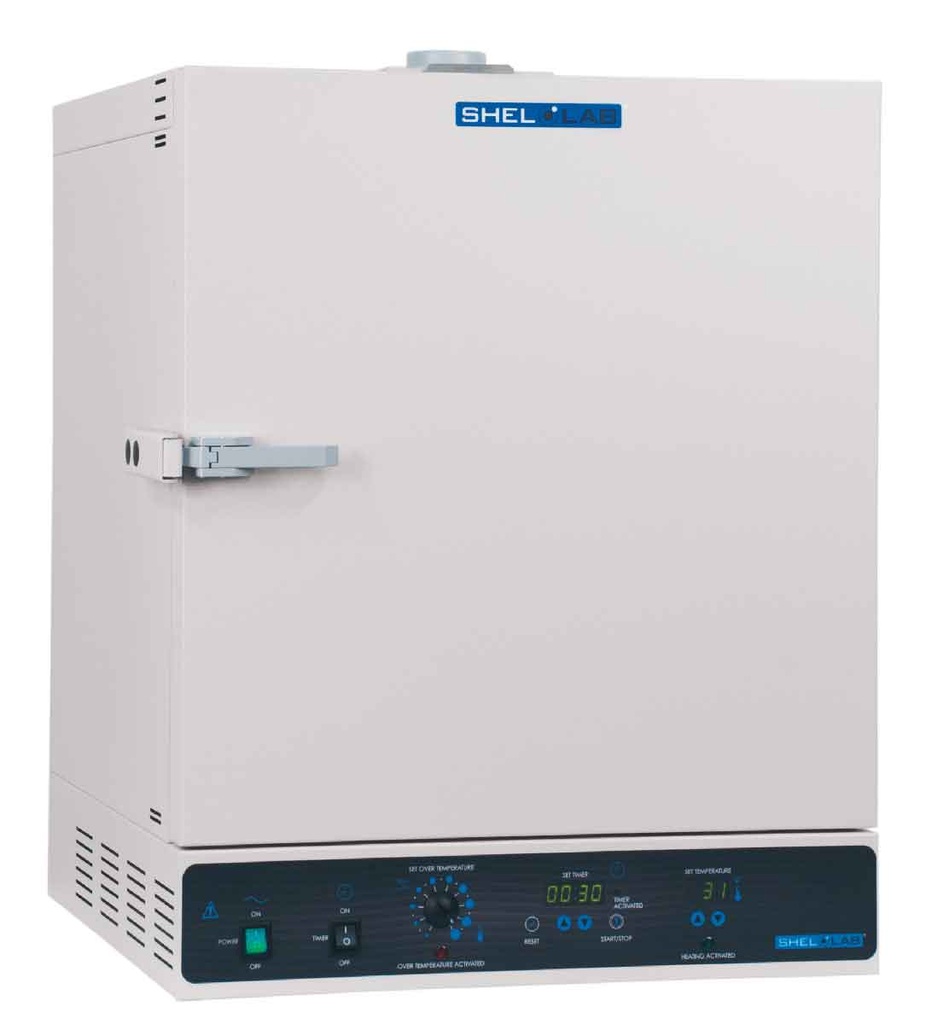

Forced-Air Oven

SMO Series Sheldon Mechanical Convection Laboratory Ovens

The SMO Series ovens are engineered for safe, accurate and uniform performance in demanding laboratory environments. These laboratory ovens are recommended for critical scientific and analytical use in laboratory and pilot plant product research with rapid heat-up time to 306°C.

Applications

• Aging
• Asphalt Testing
• ASTM, UL and Life Testing
• Baking, Conditioning, Curing
• Burn-in
• Drying
• Curing
• Moisture and Stability Testing

Features and Benefits

• Fast ramp-up to 306°C for faster cycle times
• Temperature range approximately 20°C above ambient to 306°C for multiple applications
• Advanced PID temperature control system for sensitive response
• Built-in digital timer for automatic operation following manual start
• Independent overtemperature setpoint and operational control override for additional safety
• Stainless steel interior construction for long life operation, easy cleaning
• Forced-air circulation to assure maximum temperature uniformity
• Triple-wall construction to minimize external surface temperature
• Stainless steel shelves are adjustable on 0.5" (12.7mm) centers to provide flexible inventory options
• Rear access port, 1.75" diameter (44mm) for independent cables, instrumentation
• Exhaust port, 3" diameter (76mm), adjustable, with external connection to customer-supplied vent for effluent exhaust if required
• Internationally certified CAN/CSA, UL, EN, IEC 61010, and compliant with CE
• Made in USA

Temperature Performance

SHEL LAB SMO Series ovens are available in 110-120V, 50/60Hz or 220-240V, 50/60Hz configurations and achieve temperatures up to 306°C with fast ramp-up and recovery times.

Heat-Up: Rapid heat-up times to 306°C depend on voltage selected. Published heat-up performance is based on a standard cabinet under controlled testing at a 20°C ambient temperature, line voltage ±10% of specified voltage.

Recovery: Upper vents are closed when recovery times following door openings are tested. Published recovery performance is based on a standard cabinet under controlled testing at a (22 ± 3)°C ambient temperature, line voltage ±10% of specified voltage.

Control System

The advanced loop PID (proportional, integral, derivative) controller commands proportional power to the heating element to provide the most accurate and responsive control. Each controller is matched to the oven size to assure faster response to setpoint without overshoot, and quicker recovery following door openings. The on-board timer permits programmed dwell cycles with automatic shut-off for custom applications. Indicator lights are included for visual status feedback on critical functions.

All controls are centrally located on the main panel including manual power and timer on/off switches, independent overtemperature control, digital temperature and timer setpoint adjustments, and indicator lights for all functions. Temperature setpoint data entry is in 1°C increments.

DIN 12880 Compliance

SHEL LAB SMO Series ovens are designed to meet or exceed the performance criteria established through DIN 12880:2007:05 and ASTM E145-94 (Reapproved 2006.) These criteria set common standards for laboratory oven performance in heat-up, temperature uniformity and door-open recovery time. Confirmation of temporal and spatial performance is achieved by testing with multi-point temperature probes strategically positioned throughout the oven chamber interior, including center point positions where stability, equilibrium and setpoint control are required.

Oven Specifications

Electrical Specifications and Performance

*Both NEMA 6-15P, 2.5M and CEE7/7 (EU1-16P), 2.5M are supplied with 220V-240V models.

Energy Consumption (kWh/day)

Heat-Up Performance (Minutes)

Recovery After Door Opening (30 sec.) - Minutes

Recovery After Door Opening (60 sec.) - Minutes

Temperature Uniformity
