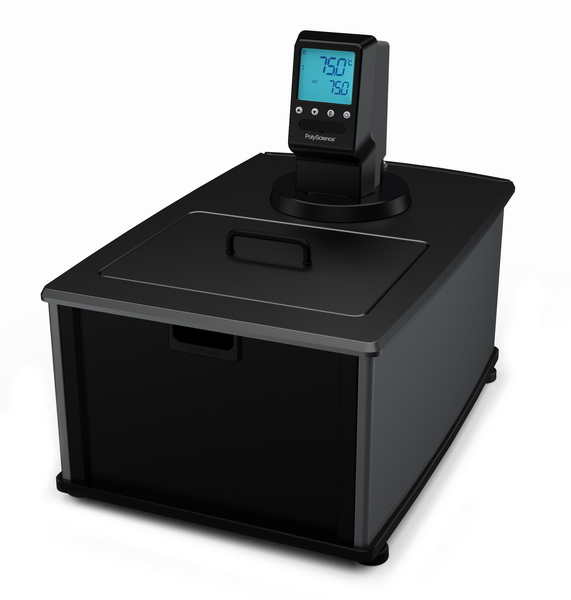

Advanced Programmable Heated Circulating Bath
These fully integrated heated circulating baths combine precision temperature control with sophisticated programming capabilities and extensive connectivity options. Available in four reservoir capacities, these systems deliver exceptional stability and feature insulated stainless steel construction with integrated drain and tap water cooling-coil for enhanced versatility.
Available Configurations
| Reservoir Size |
Temperature Range |
Heater |
120 VAC/60 Hz |
240 VAC/50 Hz |
| 7 Liter |
Ambient +10° to +200°C |
1100 W (60 Hz)/2200 W (50 Hz) |
AP07H200-A11B |
AP07H200-A12E |
| 15 Liter |
Ambient +10° to +200°C |
1100 W (60 Hz)/2200 W (50 Hz) |
AP15H200-A11B |
AP15H200-A12E |
| 20 Liter |
Ambient +10° to +200°C |
1100 W (60 Hz)/2200 W (50 Hz) |
AP20H200-A11B |
AP20H200-A12E |
| 28 Liter |
Ambient +10° to +200°C |
1100 W (60 Hz)/2200 W (50 Hz) |
AP28H200-A11B |
AP28H200-A12E |
Performance Specifications
| Parameter |
120 VAC/60 Hz Models |
240 VAC/50 Hz Models |
| Working Temperature |
Up to 200°C |
| Temperature Stability |
±0.01°C |
| Maximum Pressure |
4.3 psi (0.3 bar) |
3.6 psi (0.25 bar) |
| Maximum Flow Rate - Pressure |
5.3 gpm (20.1 l/min) |
4.4 gpm (16.7 l/min) |
| Maximum Flow Rate - Suction |
3.9 gpm (14.7 l/min) |
3.2 gpm (12.2 l/min) |
Tank Dimensions
| Reservoir Size |
Working Access (L x W x D) |
Overall Dimensions (L x W x H) |
| 7 Liter |
6.18 x 5.59 x 5" (15.7 x 14.2 x 12.7 cm) |
19.6 x 8.7 x 16.1" (49.9 x 22.1 x 40.9 cm) |
| 15 Liter |
8.35 x 10.88 x 5.5" (21.2 x 27.6 x 14 cm) |
22.4 x 14.5 x 16.6" (56.9 x 36.8 x 42.2 cm) |
| 20 Liter |
9.85 x 12.45 x 5.5" (25 x 31.6 x 14 cm) |
24 x 16.5 x 16.6" (61 x 41.9 x 42.2 cm) |
| 28 Liter |
12.35 x 14.13 x 5.5" (31.4 x 35.9 x 14 cm) |
26.5 x 18 X 16.6" (67.2 x 45.7 x 42.2 cm) |
Advanced Controller Features
- Intuitive 4.3" (10.9 cm) SmartTouch display
- Time/temperature programming (ten 100-step programs)
- 6 languages: English, French, German, Spanish, Chinese, Arabic
- Variable-speed pressure/suction pump with external circulation and temperature control capability
- Event scheduling (time & date), real-time clock and temperature trends for up to 10 days
- Selectable "home" screens and on-screen help
- Automatic and/or user-adjustable performance optimization
- 5-point calibration capability
Connectivity and Control
- USB-A & B
- RS232/485
- Ethernet
- External temperature probe
Construction and Safety Features
- Insulated stainless steel tank material
- Swivel 180™ functionality
- LidDock™ moisture management system
- DuraTop™ cooler-to-touch surface
- Integrated drain for convenient reservoir access
- Tap water cooling-coil
- Complies with DIN 12876-1 Class III safety requirements for use with flammable liquids
- RoHS, WEEE, IEC 61010-1, IEC 61010-2-010, IEC 61326-1, DIN 12876 compliant
- CE and ETL certified
All screens and menus, including on-line help, can be displayed in any of six different languages: English, French, German, Spanish, Chinese, or Arabic. Multiple connectivity options provide versatile data logging and control capabilities for diverse laboratory environments.
