Heated Ultrasonic Cleaner

Ships from United States

The Bransonic MH Ultrasonic Cleaning Bath is the leading mechanical ultrasonic bath. It's designed for performance, control, durability and reliability for a variety of applications. All Bransonic baths can also be used for cell separation, sample preparation and degassing of liquids.

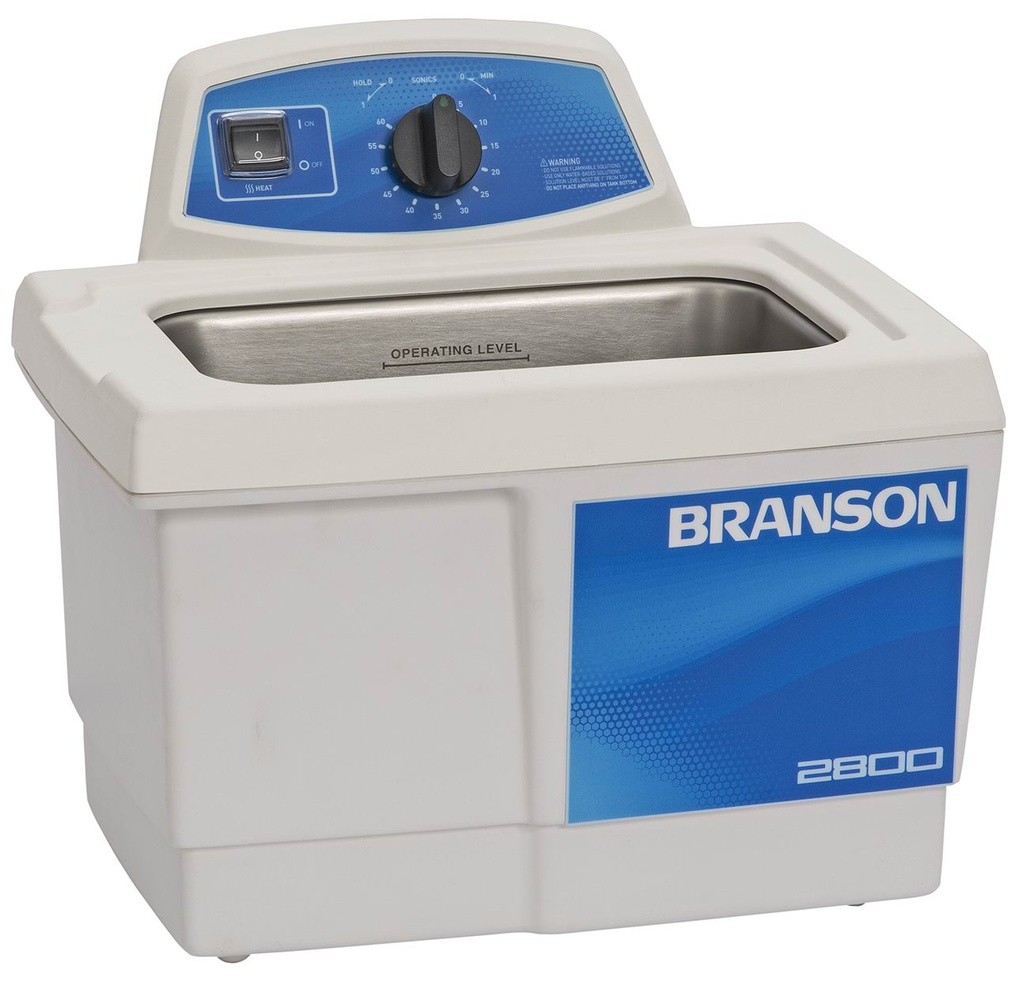

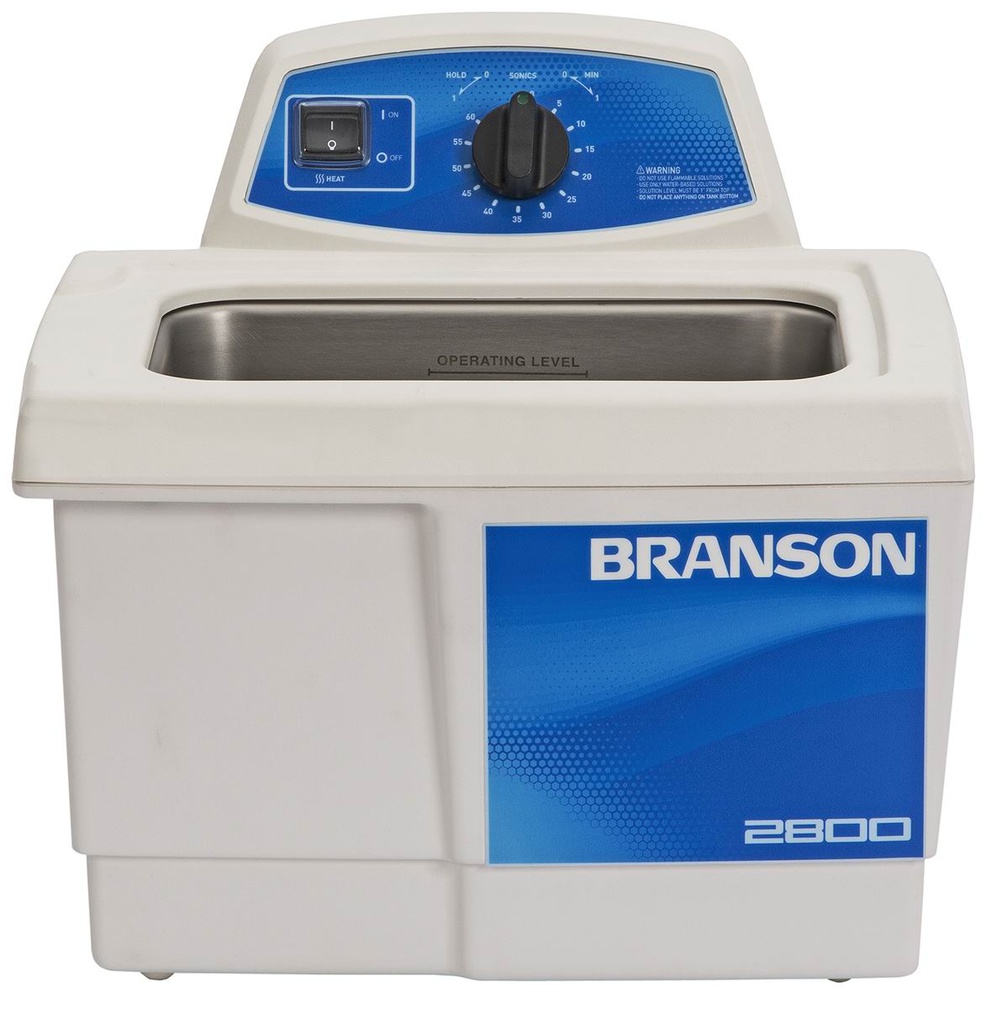

The model 2800H is heated and has a capacity of 0.75 gallon (2.8L)

Features
40kHz Industrial Transducers
60-minute Mechanical Timer (can be set to run continuously)
Tower Control Panel
Built-in Pour Drain

Note: Parts should not be allowed to reset on tank bottom, see accessories for options.

$ 1,052.00 1052.0 USD $ 1,052.00

$ 1.00

This combination does not exist.

Add to Inquiry List

General Testing

Terms and Conditions

Stock Number	N1007
Model	M2800H
Manufacturer	Branson Ultrasonics (Bransonic)
Product Brochure	n1007.pdf
Warranty	2 YEAR MANUFACTURER'S WARRANTY

COMES COMPLETE WITH:

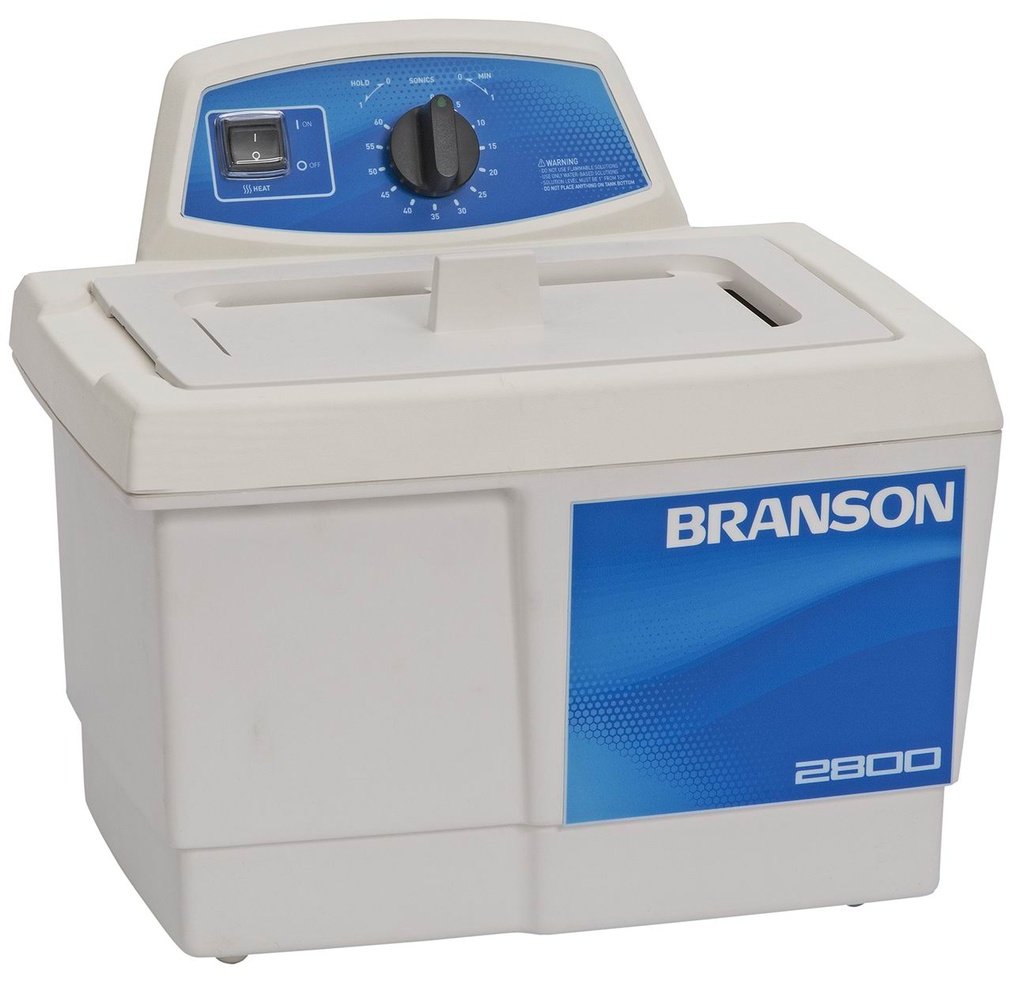

Cover

OPTIONAL ACCESSORIES AVAILABLE AT ADDITIONAL COST:
perforated tray
solid tray
beaker cover
support rack

Elc	UL
Inside	9.5"L x 5.5"W x 4"deep
Outside	13.5"W x 12"L x 11.5"H
Volts	Specify 120 or 230
Hertz	50/60

Bransonic M and MH Series Ultrasonic Baths

Bransonic M and MH Series cleaners offer precision and reliability for ultrasonic cleaning applications. The M Series features a 60-minute mechanical timer with continuous operation capability, while the MH Series adds integrated heating functionality to the same timer and operation features.

Features

Sweep frequency eliminates standing waves and creates consistent cavitation throughout the tank
40 kHz rugged industrial transducers
Controls located above and behind the cleaning tank in an easily accessible control tower panel, raised above the tank to avoid damage from cleaning solutions
Convenient built-in pour drains on .5- and .75-gallon models
Tank drains with valves on models 1.5-gallon and larger
Plastic body, chemical-resistant
Tank cover included

M Series Models (Mechanical Timer)

Voltage	Model 1800	Model 2800	Model 3800	Model 5800	Model 8800
120 V	M1800 CPX-952-116R	M2800 CPX-952-216R	M3800 CPX-952-316R	M5800 CPX-952-516R	M8800 CPX-952-816R
230/240 V	M1800-E CPX-952-136R	M2800-E CPX-952-236R	M3800-E CPX-952-336R	M5800-E CPX-952-536R	M8800-E CPX-952-836R

MH Series Models (Mechanical Timer with Heater)

Voltage	Model 1800	Model 2800	Model 3800	Model 5800	Model 8800
120 V	M1800H CPX-952-117R	M2800H CPX-952-217R	M3800H CPX-952-317R	M5800H CPX-952-517R	M8800H CPX-952-817R
230/240 V	M1800H-E CPX-952-137R	M2800H-E CPX-952-237R	M3800H-E CPX-952-337R	M5800H-E CPX-952-537R	M8800H-E CPX-952-837R

Specifications

Specification	Model 1800	Model 2800	Model 3800	Model 5800	Model 8800
Tank Capacity	1.9 L / 0.5 gal	2.8 L / 0.75 gal	5.7 L / 1.5 gal	9.5 L / 2.5 gal	20.8 L / 5.5 gal
Tank Size (L x W x D)	6 x 5.5 x 4 in 150 x 140 x 100 mm	9.5 x 5.5 x 4 in 230 x 140 x 100 mm	11.5 x 6 x 6 in 290 x 150 x 150 mm	11.5 x 9.5 x 6 in 290 x 240 x 150 mm	19.5 x 11.5 x 6 in 495 x 290 x 150 mm
Overall Size (L x W x D)	9.9 x 12 x 11.9 in 251 x 304 x 302 mm	13.3 x 12 x 11.9 in 337 x 304 x 302 mm	15.6 x 12.5 x 14.8 in 397 x 317 x 377 mm	15.6 x 15.8 x 14.9 in 397 x 401 x 378 mm	23.5 x 18.3 x 15.4 in 596 x 466 x 391 mm
Weight	7 lb / 3.2 kg	9 lb / 4.1 kg	12 lb / 5.4 kg	14 lb / 6.4 kg	26 lb / 11.8 kg
Frequency	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz
Drain	No	No	Yes	Yes	Yes
