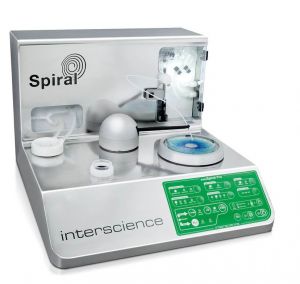

Interscience easySpiral Spiral Plater Inoculator

Condition: New Brand new item from stock or on order from manufacturer
1 YEAR MANUFACTURER'S WARRANTY
Stock #:
N1376
Status:
Available In Stock (request a quote)
Dimensions (approx.):
15"W x 16.5"D x 11.5"H (outside)
Electrical:
100-240 Volts, 50/60 Hz,
Product Description
The new easySpiral patented technology allows the automatic plating of your sample on a Petri dish in only 25 seconds with a decreasing concentration replacing up to 4 necessary dilutions with a sensitivity from 300 to 130 000 CFU/mL. easySpiral is equipped with an innovative unique stylus cleaning device, for the guarantee of perfect disinfection of the stylus and no risk of cross-contamination.

THE FASTEST SPIRAL PLATER
- 25 seconds for a full cycle (disinfection, sample-taking and plating)
- 2 preset plating modes
- Revolutionary rotating arm with high-speed movement (Patented)
- 10 Petri dishes plated in less than 2 minutes (with the same sample)

OVERFLOW TECHNOLOGY
- Stylus disinfection system: inside and outside by overflow, 8 bars pressure (Patented)
- No cross contamination
- Unique patented system by overflow
- 600 cleanings without changing bottles

CONSUMABLES REDUCED UP TO 75%
- Reduced budget for consumables
- No specific consumables needed
- More space in your laboratory

SPECIFICATIONS:
Sensitivity: from 30 to 10 million CFU/mL
Syringe capacity: 1000 µL
Preset Volume dispensed: 50 or 100 µL
Counting range: 300 to 1.3 x 105 CFU/mL
Full cycle time: 25s
Overflow technology: 8 bars pressure
Cleaning autonomy: 600 cycles (2L bottles)
Successive plating capacity with the same sample: 20 Petri dishes (50 µL)
Automatic monthly cleaning
90 mm Petri dish
Exponential deposition mode
Circle deposition mode

DELIVERED WITH
- 1 000 sterile beakers
- 1 blue dye for testing
- 1 liquid detergent
- 3 sets of connectors for autoclavable GL45 bottles
- Container stand for testing
- Counting grid: 90 mm
- Power cable
- User manual, IQ/OQ/PQ guidelines
- Quick user guide
The following link provides additional information from the instruction manual or original manufacturer's brochure. Right-click to open the PDF in a new window or download it:
Interscience easySpiral Spiral Plater Inoculator
