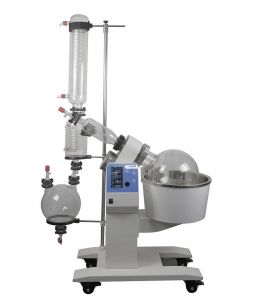

SciLogex SCI100-S (Coiled Condenser) Rotary Evaporator

Condition: New Brand new item from stock or on order from manufacturer
2 YEAR MANUFACTURER'S WARRANTY
Stock #:
N2222
Dimensions (approx.):
18.3 in.W x 18 in.D x 23 in.H (outside)
Electrical:
SPECIFY 110 or 230 Volts, 50/60 Hz, 1100W
Product Description
SCILOGEX SCI100-S Rotary Evaporator including vertical coiled condenser, 5L bath, 1000ml evaporating flask NS 24/40 and 1000ml receiving flask KS 35/20.

Features:

~ Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
~ 5L heating bath, temperature range from room temp. to 180°C, with independent control
~ Patented condenser (cooling surface 1200cm²) with excellent cooling effect
~ Manual lift, lockable for precise positioning
~ Speed range from 20 to 200rpm, and interval operation in clockwise and anti-clockwise directions for drying process
~ Overheating/boil dry protection
~ Timer function for precise control processing
~ Chemical-resistant PTFE seals and patented pressure springs provide excellent sealing
~ Precise temperature control and adjustable safety circuit
~ Quick release connectors for easy flask removal
~ Ejection mechanism ensures easy removal of evaporating flask
~ Patented double spring sealing ring which is made of PTFE provides excellent sealing performance
~ Remote function provides PC control and data transmission

SPECIFICATIONS:
Motor Type: Brushless DC Motor
Speed Range: 20-200rpm
Display: LED (speed, temperature, time)
Clockwise and Anti-clockwise: Yes
Heating Temperature Range: Room temp. To 180°C
Control Accuracy: ±1°C
Heating Power: 1010W
Stroke Displacement: automatic 150mm
Timer: Yes
Time Setting Range: 1-999min
USB Interface: Yes
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
SciLogex SCI100-S (Coiled Condenser) Rotary Evaporator or copy the following into your browser address window: labequip.com/stock/pictures/n2222.pdf

ACCESSORIES:

COMES COMPLETE WITH:
vertical coiled condenser
5L bath
1000ml evaporating flask NS 24/40
1000ml receiving flask KS 35/20

OPTIONAL ACCESSORIES AVAILABLE AT ADDIONAL COST:
SCILOGEX-400 PTFE Chemical Resistant Vacuum Pump
KS 35/20 receiving flask, 100ml
KS 35/20 receiving flask, 250ml
KS 35/20 receiving flask, 500ml
KS 35/20 receiving flask, 1000ml
KS 35/20 receiving flask, 2000ml
Glass connector, NS 24/40 - NS 19/22
Glass connector NS 24/40 - NS 14/20
Evaporating flask, 100ml, NS 24/40
Evaporating flask, 250ml, NS 24/40
Evaporating flask, 500ml, NS 24/40
Evaporating flask, 1000ml, NS 24/40
Evaporating flask, 2000ml, NS 24/40
Condenser Attachment Ring
PTFE compound Rotary Evaporator seal
Condenser Vacuum Tap
Vapor tube, NS 24/40
Foam break, 250ml NS 24/40 - NS 24/40
Red Cap and Connector
Vacuum regulator/moisture trap (including vacuum gauge and pressure regulating valve)
Benchtop Vacuum Controller, 1-1000mbar
Recirculating Chiller, -20°C to ambient
