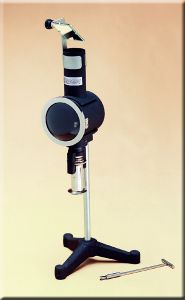

Koehler Instrument K27000 Smoke Point Lamp

Product Description
Smoke point is an indicator of the combustion qualities of aviation turbine fuels and kerosene. The fuel sample is burned in the Smoke Point Lamp, and the maximum flame height obtainable without smoking is measured.
Burns fuel samples under controlled conditions for smoke point determinations of aviation turbine fuels and similar products. Consists of brass lamp body with chimney; gallery; 0-50mm black glass scale with white markings; brass plated door with curved glass window; candle socket; and plated brass candle with wick tube and air vent. Mounted on a cast iron base with aluminum support rod.

Conforms to: ASTM D1322; ISO 3014; IP 57; DIN 51406; FTM 791-2107; NF M 07-028

Included Accessories:
~ Cotton Wicks, non-extracted (6)

OPTIONAL ACCESSORIES:

Catalog# ___ Product Description
K27021 __ Extracted Cotton Wicks - Prepared in accordance with ASTM D1322 (7.2) requirements. Packed in a sealed tube with desiccant. Case of 12.
K27020 __ Cotton Wicks, pack of 12
K27050 __ Sighting Device - Installs on chimney of Smoke Point Lamp. Eliminates parallax.
K27060 __ Wick Insertion Tool - Facilitates insertion of cotton wick into wick tube
K27065 __ Wick Trimmer - Use together with K27060 Insertion Tool to place wick at the correct height in the wick tube, free of twists and frayed ends.
K27010 __ Interchangeable Candle
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K27000 Smoke Point Lamp or copy the following into your browser address window: labequip.com/stock/pictures/n1248.pdf
Made in USA.
This item ships from Bohemia, NY.

---
