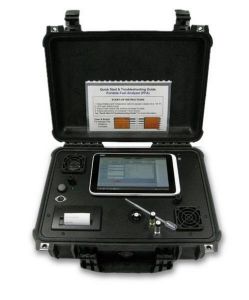

Koehler Instrument K24900 Portable Fuel Property Analyzer

Condition: New Brand new item from stock or on order from manufacturer
Stock #:
Dimensions (approx.):
7"W x 13"D x 16"H (outside)
100-240 Volts, 50/60 Hz,
Product Description
The Portable Fuel Property Analyzer (PFPA) provides rapid fuel analysis anywhere it's needed: the plant, port, or field. Analysis is obtained in seconds using only a 2 mL fuel sample. The PFPA uses Near Infrared Spectroscopy combined with Advanced Multivariate Analysis to determine key fuel properties that influence engine performance.
The PFPA property determinations were developed and validated according to ASTM E1655 "Standard Practice for Infrared Multivariate Quantitative Analysis" using the property values of a diverse matrix of over 800 fuels from around the world determined by traditional ASTM methods.

Properties Predicted by the PFPA
Diesel ___________________________ Jet Fuel ______________________ Gasoline
Density/API Gravity ________ Density/API Gravity ________ Density/API Gravity
Distillation Fractions _____ Distillation Fractions _____ Distillation Fractions
Cetane Index _______________ Freeze Point _______________ Ethanol & MTBE
Viscosity (40°C) ___________ Flash Point ________________ BTEX
Flash Point ________________ Fuel System Icing Inhibitor ___ Reid Vapor Pressure
Cloud Point _____________________________________________ Octane (RON, MON, AKI)

Advantages / Features
~ One Analyzer for all fuel types
~ Only 2mL of fuel required
~ No sample preparation required
~ Analyzer warm-up takes <1 minute
~ Complete analysis in 10 seconds
~ Permanently aligned and calibrated
~ Light weight, portable and easy to use
~ Rugged design, no moving parts
~ Analysis based on ASTM Data, developed and validated according to ASTM E1655
~ Analysis software and tablet computer included
~ Imbedded Printer
~ Optional 4 hour rechargeable battery pack

~ Fuel Properties: Developed and validated according to ASTM E1655
~ Warm-up Time: 1 minute
~ Measurement Time: 10 seconds
~ Sampling: 2 mL glass vials (disposable)
~ Measurement Type: Near Infrared Spectroscopy
~ Optical Design: Dispersive (no moving parts)
~ Light Source: Incandescent Lamp
~ Detector: 256 pixel InHaAs
~ Spectral Resolution: 3 - 6 nm (20 - 30 cm-1)
~ Spectral Range: 1000 to 1600 nm
~ Calibration: Factory set using NIST standard lamp
~ Calibration: Each unit is calibrated with a diverse matrix of over 800 fuels
~ System Check: Methylene Chloride Matrix
~ Outlier Detection: Non fuel or contaminated fuel rejected
Data System
~ Computer: Tablet with Windows 8.1
~ Sample Storage: Over 1000 measurements
~ Data Export: USB Port, Ethernet, WiFi
~ Data Printout: Thermal Printer

~ 2mL Sample Vials (100)
~ 3mL Pipettes (100)
~ 1 Reference Vial and 1 Fuel Sample Vial
~ Power Cables for 110/220 VAC
~ Built-In Thermal Printer
~ Embedded touch screen computer
~ System is integrated in Pelican case
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
Koehler K24900 Portable Fuel Property Analyzer or copy the following into your browser address window: labequip.com/stock/pictures/n1534.pdf
Made in USA.
This item ships from Bohemia, NY.
