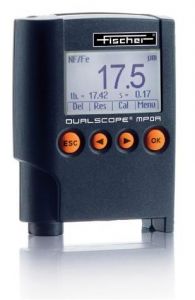

BYK-Gardner Dualscope MP0R (3686) Paint Thickness Gauge

Condition: New Brand new item from stock or on order from manufacturer
1 YEAR MANUFACTURER'S WARRANTY
Stock #:
N1460
Dimensions (approx.):
1.2"W x 2.5"D x 3.3"H (outside)
Product Description
The DUALSCOPE MP0R film gage allows quick and easy measurements of coatings thickness on ferrous and non-ferrous substrates. The instrument automatically identifies the kind of substrate and selects the appropriate test method accordingly. The instrument is designed for one-hand operation. An integrated spring guarantees a constant pressure of the probe to the sample's surface. The instrument comes with an USB interface for bi-directional data transmission to the Data Center Software. Data can be exported to Excel spreadsheet.

DUALSCOPE MP0R:
~ Compact size instrument
~ Illuminated display
~ Statistic function, min., max., mean, Std. dev.
~ Two displays for easy view for measurement results
~ Magnetic-induction Fe-sensor particularly suitable for the automotive industry
~ Eddy current method for non-ferrous substrates
~ Large memory stores up to 10.000 values
~ Indicator LED for pass/fail
~ Conductivity compensation for measurements on aluminum alloys
~ Continuous scan of measurement surface
~ Easy to use menu navigation
~ Automatic turning display
~ Two special measuring modes to conform to IMO PSPC (90/10 rule) and SSPC-PA2

SPECIFICATIONS:
~ Substrate Fe: steel or iron
~ Substrate NFe: non-magnetic metals: aluminum, copper, brass, zinc, stainless steel
~ Measuring Range: 0 - 2000 µm (0 - 78 mils)
~ Memory: 10.000 values
Accuracy:
~ 0 - 75 µm: .1.5 µm (Fe)
~ 0 - 50 µm . 1.0 µm (NFe)
~ 75 - 1000 µm: . 2% of reading (Fe)
~ 50 - 1000 µm . 2% of reading (NFe)
~ 1000 - 2000 µm: . 3% of reading (Fe)
~ 1000 - 2000 µm: 3% of reading (NFe)

~ Minimum Curvature: 5 mm (0.2 in) convex, 32 mm (1.2 in) concave
~ Minimum Substrate Thickness: Fe: 0.1 mm; NFe: 0.02 mm
~ Min. Measuring Area: 2.5 x 2.5 mm (0.1 x 0.1 in)
~ Power Supply: 2 x AA batteries

Comes complete with:
~ DUALSCOPE MP0R gage
~ Manual
~ 2 x AA batteries
~ Protective bag
~ Zero standard Fe/NFe
~ Thickness standard
~ Protective cap
~ Lanyard
~ Calibration certificate
~ PC Datex software
~ Data Center software
~ USB cable
~ Instrument case
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK Dualscope MP0R (3686) Paint Thickness Gauge or copy the following into your browser address window: labequip.com/stock/pictures/n1460.pdf
Made in Germany.
This item ships from Columbia, MD.
