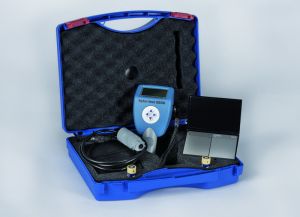

BYK-Gardner byko-test 8500 B Fe (3661) Dry Coating Thickness Gauge

Condition: New Brand new item from stock or on order from manufacturer
1 YEAR MANUFACTURER'S WARRANTY
Stock #:
N1462
Dimensions (approx.):
4.9"W x 2.6"D x 1.3"H (outside)
Product Description
The byko-test 8500 film thickness gage has a modular design to accommodate a wide range of applications. Multiple sensor probes are available for maximum flexibility. Coating thickness can be measured on a wide variety of metal substrates: iron, steel, copper, aluminum, zinc, brass, and titanium.

~ Illuminated graphical display and keypad
~ Easy to use menu
~ One-hand operation
~ Flip display by 180 degrees
~ Multi-language support
~ Modular design with exchangeable probes
~ Automatic and user specific calibration
~ Wireless data transfer to PC (optional)
~ Durable, wear-resistant ruby probe tip
~ V-groove in probe for measuring cylindrical parts
~ Acoustic signal for measurement confirmation

Two models are available for different requirements:

BASIC VERSION:
With all important functions needed to measure and evaluate the thickness of non-metal layers on metal substrates. Basic statistical functions, memory for up to 100 readings, optional wireless connection to a PC and data transfer to Excel.

PREMIUM VERSION:
Enhanced memory functions, batch measurement with up to 13000 measurements in 200 batches, memory for up to 100 custom calibrations, software and wireless data transfer, average zero adjustment for rough substrates, single and continuous measurement modes included

SPECIFICATIONS:
~ Resolution 0.1 µm 0 - 99.9 µm, 1 µm 100 - 999 µm, 10 µm >= 1000 µm
~ Accuracy ± (1 µm + 2%*) 0 - 2000 µm (*) percent of measurement value, ± 3,5%* > 2000 µm
~ Measurement Range 0 - 2000 Mm (0 - 78 mils)
~ Minimum Area of Measurement: Fe: 10 x 10 mm (0.79 x 0.79 in), NFe: 10 x 10 mm (0.79 x 0.79 in)
~ Minimum Curvature convex 5 mm (0.20 in); concave 30 mm (1.2 in)
~ Minimum Substrate Thickness: Fe: 0.2 mm (0.008 in), NFe: 0.05 mm (0.002 in)
~ Communication Wireless Connection 2.4 GHz, distance max. 10 m
~ Power Supply 2 x Mignon-Batteries (AA) 1.5V Alkali or rechargeable-Batteries (AA) 1.2V
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK byko-test 8500 B Fe (3661) Dry Coating Thickness Gauge or copy the following into your browser address window: labequip.com/stock/pictures/n1462.pdf
Made in Germany.
This item ships from Columbia, MD.
