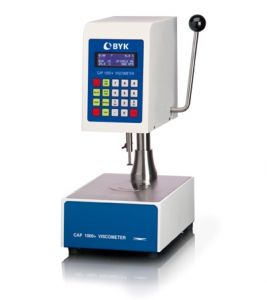

BYK-Gardner CAP 2000+ L or H Digital Cone and Plate Viscometer

Product Description
The CAP2000+ is a variable speed 5-1000 rpm instrument ideal for R&D as well as more detailed QC testing. Automated PC control (using optional Capcalc32 software).
It also offers lower shear rates, making it suitable for many applications where small sample volume and good temperature control are necessary. The CAP-2000+ offers expanded temperature and viscosity ranges with variable speed capability. The CAP2000+ also offers lower shear rates, making it suitable for many applications where small sample volume and good temperature control are necessary. And the rugged, easy-to-use design make it perfect in environments where other instruments won't last.

FEATURES AND BENEFITS:
Expanded Ranges
Viscosity 0.2 - 15,000 Poise
Shear Rate 10 - 13,000 sec-1
Temperature 5-75°C or 50-235°C
Speed of Rotation 5-1000 RPM
Meets Industry Standards: ASTM D4287, ISO 2884 and BS 3900
Small sample size, less than 1 mL, simplifies testing
Integrated temperature control
Optional CAPCALC32 software for complete control and data analysis
Open system for quick and easy cleaning

COMES COMPLETE WITH:
Instrument
Choice of Torque Range
-Standard Torque (ICI Specification) 181,000 dyne· cm
-Low Torque: 7,970 dyne· cm
Choice of One Cone Spindle
Choice of Temperature Control (L or H)

Optional Accessories:
CAP Viscosity Standards
Additional Cone Spindle
Capcalc32 Software E
Protective Keypad Covers
The following link provides additional information from the manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK CAP 2000+ L or H Digital Cone-Plate Viscometer or copy the following into your browser address window: labequip.com/stock/pictures/n1658.pdf
Made in USA.
This item ships from Columbia, MD.

---
