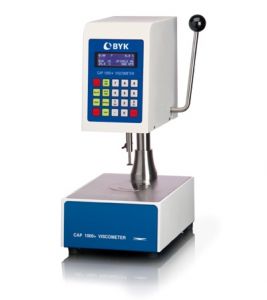

BYK-Gardner CAP 1000+ L or H Digital, Cone-Plate Viscometer

Condition: New Brand new item from stock or on order from manufacturer
Stock #:
Dimensions (approx.):
26 x 18 x 19"H (outside)
Specify 120 or 230 Volts, 50/60 Hz,
Product Description
The CAP 1000+ Viscometer is a compact, heavy-duty instrument that is ideal for fast, easy, repetitive testing on the production floor or in the QC lab. Small sample size is a plus, along with integrated temperature control built into the sample plate. It has two available speeds to comply with all paint industry standards worldwide (750 and 900 rpms), optional speed of 400 rpm upon request.

CAP 1000+ L CAP 1000+ H
Temperature Range: 5 - 75 °C 50 - 235 °C
Viscosity Poise: 0.25 - 100 0.25 - 100
Speeds rpm 750 or 900 750 or 900
Shear Rate sec-1 up to 13,300 up to 13,300

Quick single point test
Choice of shear rate. Standard speeds include 750 and 900 rpm to provide shear rate at 10,000 sec-1.
Rapid temperature control with built-in Peltier element in sample plate
Meets Industry Standards: ASTM D4287, ISO 2884 and BS 3900
Rugged design can handle production environment
Small Sample Size, < 2mL, Simplifies Testing
Easy to Clean
Customizable options
Parallel printer output

Timed Readings Digital timer with continuous running override; range 15 to 99 seconds
Temperature Control Increments of 0.1 °C

Cone & Plate Viscometer
1 cone - Specify cone number when ordering.
Operation manual
The following link provides additional information from the instruction manual or manufacturer's brochure. Click to open the PDF in a new window or right-click to download it:
BYK CAP 1000+ L or H Digital Cone-Plate Viscometer or copy the following into your browser address window:
Made in USA.
This item ships from Columbia, MD.
Looking for a specific close-up? Contact Us
Request a Free Quote Right Now
