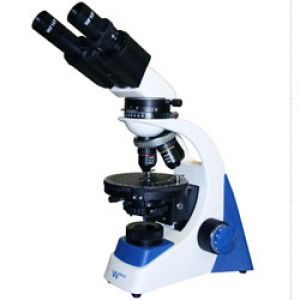

WP 50-CXBP Polarizing Microscope

Condition: New Brand new item from stock or on order from manufacturer
5 year manufacturer's Limited warranty
Stock #:
N1445
Status:
Available In Stock (request a quote)
Product Description
This polarizing microscope is an ideal instrument for geology, petroleum, mineral crystal and physics studies. The stress free optics and design make observation of samples fast and easy. Includes 4x, 10x, 40xR, 100xR DIN Achromatic Objectives and LED illumination.

FEATURES:

- Ergonomically designed metal frame, arm and base are of one piece construction
- 30° Siedentopf binocular head, 360° rotatable.
- Standard 10X/18mm wide-field eyepieces, diopter adjustment on right eyepiece tube, calibrated pointer on one eyepiece
- Interpupillary adjustment from 55mm to 75mm
- Quadruple reverse nosepiece with non-stress DIN achromatic objectives
- Revolving 160mm diameter round stage that is 360° rotatable, 1° divisions with verniers reading to 6'
- Spring-loaded stage clips
- Low position coaxial coarse and fine focusing knobs
- Focusing range of 14mm, fine focus graduation of 0.01mm
- Rack and pinion coarse focusing stops at both ends of travel to prevent damage to the microscope gears
- Tension adjustment eliminates focus drift.
- Focusable 1.25N.A Abbe condenser and rack-and-pinion iris diaphragm with 2-30mmØ adjustable aperture
- 3w LED light system with light intensity control
- Polarizing unit is on the light collector and is 360° rotatable
- Rotatable polarizing analyzer unit with 0-90° graduation
- Optical compensators: First order red and ¼ wavelength retardation plates
- Comes complete with dust cover and instruction manual

Priced as a binocular microscope. Please request pricing for the trinocular version if interested.
The following link provides additional information from the instruction manual or original manufacturer's brochure. Right-click to open the PDF in a new window or download it:
http://www.labequip.com/stock/pictures/n1445.pdf
