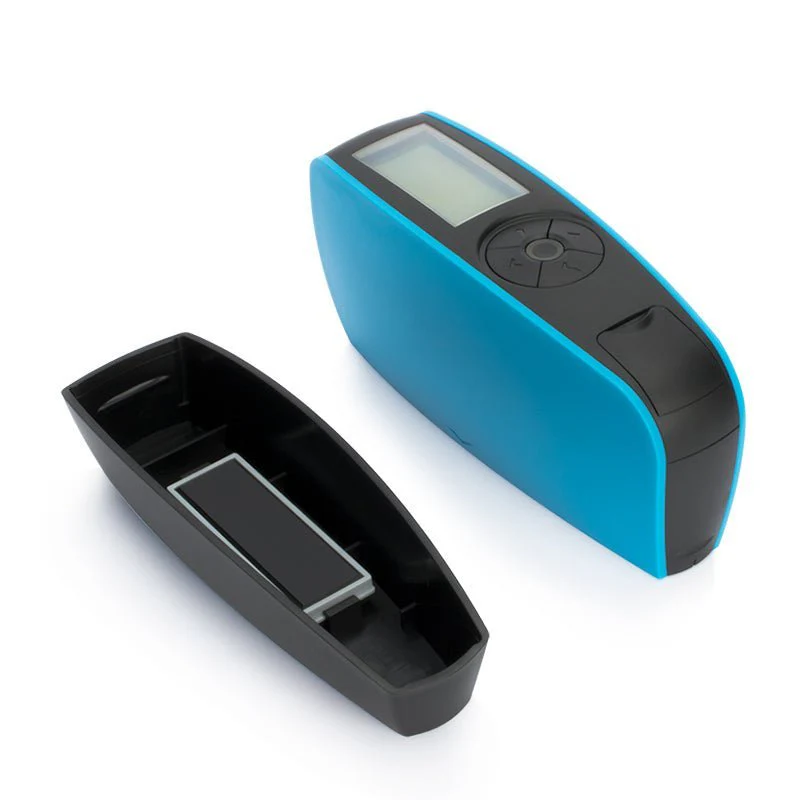

60-degree Gloss Meter

The YG 60 Gloss Meter is a versatile instrument for measuring surface gloss with high accuracy. Featuring a 60° measurement angle, it delivers reliable gloss readings on various materials, including paint, coatings and plastics.

This instrument boasts an ergonomic design, an easy-to-read LCD screen, 4 measuring modes and a user-friendly interface, making it ideal for quality control in industrial and commercial applications including: paints, coatings, plastics, ink, rubber, printing, paper, glass, hardware, ceramic, marble, etc.

FEATURES:
Stores over 35,000 readings
Auto calibration
Auto power-off (from 30-120 seconds)
USB/RS-232 interface and Bluetooth 2.1 dual mode
Complies with: ISO2813, ASTM523, GB/T9754 & JJG696
GQC6 PC software for reporting and extended functions

SPECIFICATIONS:
Measuring Angle: 60°
Measurement Range: 60°: 0-1000GU
Division Value: 0.1GU
Measuring Modes: Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time: 0.5S
Repeatability: 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Auto Power-off: Within 30s-120s
Calibration: Auto Calibration
Storage: 35000 (Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display: 2.3 inch white and black screen
Power Supply: 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface: USB
PC Software: GQC6 QC software can printing testing report and with more extended functions
