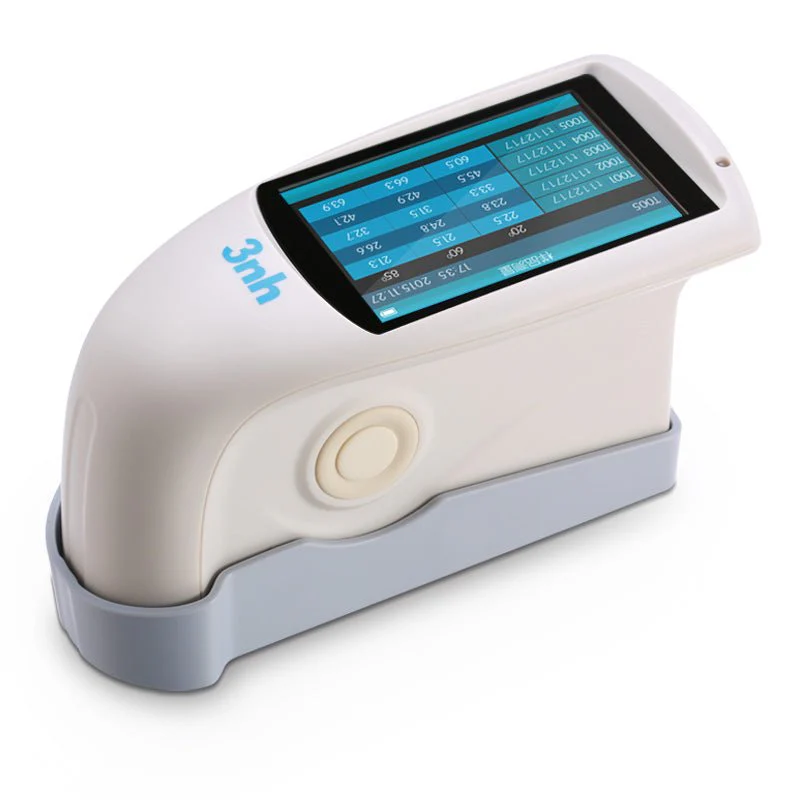

60-degree Gloss Meter

Ensure consistent gloss levels and meet stringent quality standards with the NHG 60 full touch screen 60° precision gloss meter.

This gloss meter can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
This gloss meter is compatible with international standards including ASTM D523 and ASTM D2457, ensuring its suitability for diverse applications in various industries.

This instrument offers multiple measurement modes:
- Basic measurement mode for standard gloss assessment.
- Statistical measurement mode to analyze data across multiple samples.
- Continuous measurement mode for assessing uniformity over large areas.
- QC measurement mode (requires GQC6 software) for quality control applications

FEATURES:
- User-Friendly Interface: Equipped with a large touch screen, the NHG60 Gloss Meter provides intuitive operation and clear display of up to 5 sets of measurement data simultaneously, facilitating easy comparison and analysis.
- Extended Functionality: Connect seamlessly to a PC for enhanced data management and additional analysis capabilities, expanding the meter's utility beyond basic measurements.
- Flexible Data Handling: Input gloss values manually when necessary, allowing for flexibility in data entry and analysis.
- Robust Storage Capacity: With a storage capacity of over 5000 data points, the NHG60 ensures ample room for storing measurements, ideal for extensive testing sessions without frequent data clearing.
- Long-lasting Performance: Powered by a built-in lithium ion rechargeable battery, the gloss meter offers extended operational uptime and reliability in various work environments.
- Wide Application Range: Suitable for measuring gloss on a wide array of surfaces including paint, ink, coatings, wood products, stone, ceramics, plastics, paper, and more, the NHG60 Gloss Meter is indispensable across multiple industries where gloss measurement is critical.
- Elegant and Functional Design: Combining aesthetic appeal with practicality, the NHG60 boasts a sleek design and a user-friendly interface that enhances communication between operators and the device.

SPECIFICATIONS:
Measuring Angle: 60°
Complies with standard: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm): 9x15
Measurement Range: 0~1000GU
Division Value: 0.1GU
Measurement Range: 0-10GU 10-100GU 100-1000GU
Repeatability: ± 0.1GU ± 0.2GU ± 0.2%GU
Reproducibility: ± 0.2GU ± 0.5GU ± 0.5%GU
Interface USB/RS-232
Data Save: Basic mode: 1000, Statistical Mode: 5000, Continuous mode: 5000
Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.

Indispensable for quality control, R&D and production processes across industries including automotive, furniture, electronics and building materials.
