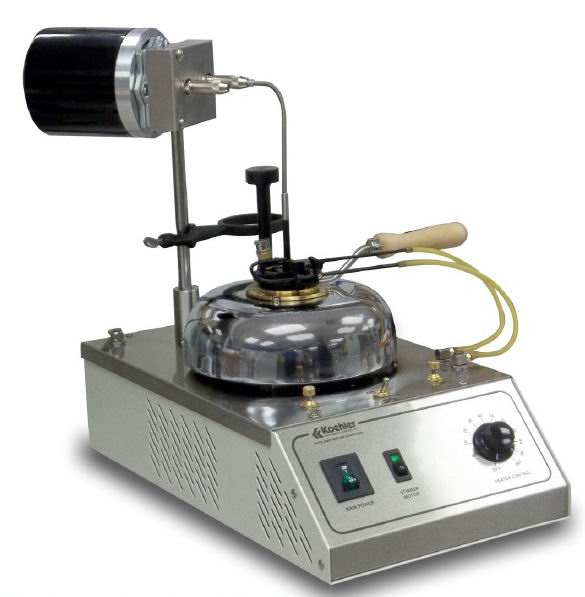

Flash Point Tester

N431

Koehler K16200 Pensky-Martens

For flash point determinations of fuels, lubricating oils, liquids containing suspended solids & liquids that tend to form a surface film during testing. Includes Brass Test Cup with Handle & thermometer holder. Conforms to ASTM D93 and related specifications. FROM MANUFACTURERS LITERATURE: Determines flash points of a wide range of products by a closed cup method with slow speed stirring of the sample. Extensively used in shipping and safety regulations for detection of contamination by volatile and flammable materials in fuel oils and lubricating oils, and for characterization of hazardous waste samples. Smooth operating cover mechanism slides shutter open and applies test flame at the turn of a knob. Cover fits over brass test cup and includes pilot flame, test flame reference bead, built-in stirrer (not the motor - additional cost if required) and plated brass thermometer ferrule. Electrically heated model is equipped with a 750W nickel-chromium heater with stepless variable control for accurate, repeatable temperature rate of rise settings per specifications. Heater unit is enclosed in a stainless steel housing with cooling vents. Includes line cord receptacle and switch for accessory slow speed stirrer. Conforms to: ASTM D93; AASHTO T73-811; IP 34; ISO 2719; DIN 51758; FTM 791-1102. SEE STOCK #N432 FOR ADDITIONAL COST OF STIRRER MOTOR ***Not a stock item - please call to confirm pricing & availability*** THERMOMETER IS NOT INCLUDED BUT CAN BE ORDERED FOR AN ADDITIONAL $34 - Celsius or Fahrenheit Accessories available at additional cost: 250-000-09F ASTM 9F Thermometer 20 to 230F 250-000-09C ASTM 9C Thermometer -5 to +110C 250-000-10F ASTM 10F Thermometer 200 to 700 250-00-10C ASTM 10C Thermometer 90 to 370C K16010 Cover Assembly - Complete assembly. Includes shutter, flame exposure device, stirrer and thermometer ferrule. K16020 Brass Test Cup With heat resistant handle.

New

115 Volts, 50/60 Hz, 6.5A

Thank you for your information request on Labequip stock #N431, Closed-Cup Flash Point Tester, Koehler K16200 Pensky-Martens.
Please contact us for pricing, shipping charges, or a formal quotation...
PHOTOS: These photos are reduced in size for display on the internet. Please contact us if you wish to receive larger, high-resolution images by e-mail. We will also be pleased to provide a close-up of any part of the instrument you specify.
