Furnace

N213

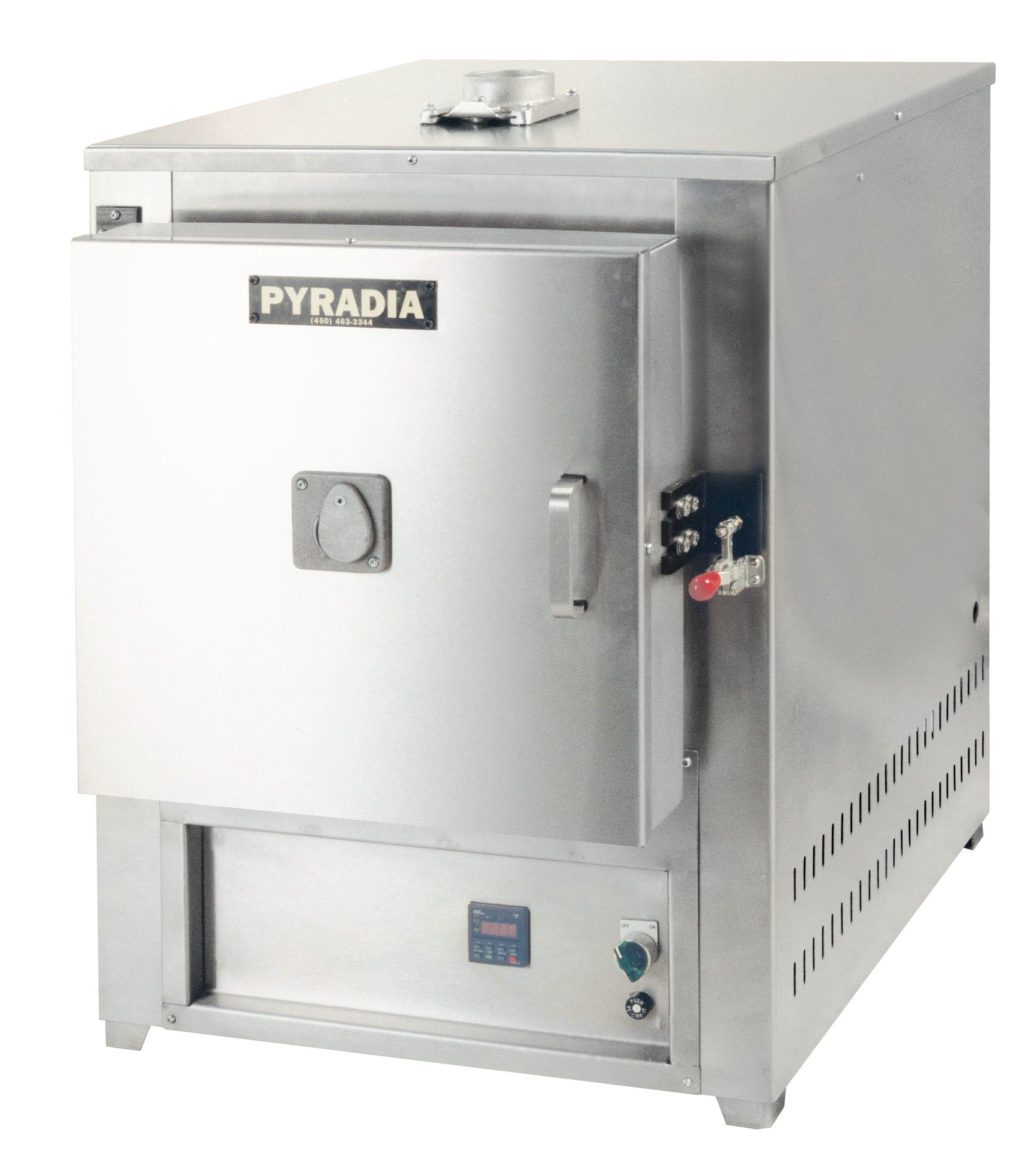

Pyradia F100

Pyradia's tabletop furnaces integrate quality components and superior workmanship, for maximum performance in a variety of industrial or laboratory applications, at temperatures as high as 2300F (1260C). Heavy duty construction - rugged furnace design incorporates quality hardware to a heavy gauge casing, for increased durability in all type of processes. The highest quality low-density refractory bricks used in the construction of its chamber assure maximum insulation while minimizing heating or cooling cycles. The specially designed grooved bricks optimize heat transfer and fully support the FeCrAl heating elements for maximum life expectancy. Pyradia tabletop furnaces are equipped with state of the art ramp to set point digital microprocessor temperature controller with auto tuning PID parameter offering ramp/soak program capability. Heavily hinged door with a 180 degree opening. Maximum temperature of 1800F/1000C. Enamel coated exterior. Available with stainless steel exterior at additional cost. OPTIONS (additional cost): Counterbalanced guillotine lifting door with "Zero weight positioning" Heavy-duty furnace stand Special heating elements used in corrosive environment Programmable controller of 2 programs with 8 segments ramp/soak Solid State Relay for increase temperature accuracy and silent operation Slide gate located on top of furnace to vent corrosive vapors, also comes with a peephole in door High limit controller to automatically shutdown heating elements when maximum temperature is exceeded Door safety switch to automatically shut off heating elements when door is opened Heating elements in door to offer greater heat distribution

New

(inside:) 10"W x 11.5"D x 10"H (outside:) 20"W x 29"D x 29"H

120 Volts, 60 Hz, 1.5KW

Thank you for your information request on Labequip stock #N213, Bench-model Furnace, Pyradia F100.
Please contact us for pricing, shipping charges, or a formal quotation...
PHOTOS: These photos are reduced in size for display on the internet. Please contact us if you wish to receive larger, high-resolution images by e-mail. We will also be pleased to provide a close-up of any part of the instrument you specify.
